Robits Core Kit

Robits Core Kit

by AndyMark
Save 23% Save 23%
$899.00
$899.00 - $899.00
$899.00
$695.00
$695.00 - $695.00
$695.00

Designed with accessibility in mind, Robits is the AndyMark building system for FIRST Tech Challenge teams.
SKU am-5000a
  • Description
  • What's in the Box?

  • Curriculum Now Available! Six lessons of curriculum using the Robits Core Kit are now available to download.

    Robits is a new AndyMark building system for FIRST Tech Challenge teams, designed with accessibility in mind. Robits encourages rapid iteration and promotes development of critical thinking and problem solving.

    The Robits system is designed to reduce complexity and enable robust builds. Parts align to a common 1/2 in. grid simplifying construction and allowing alignment of both structure and motion components. Optimized resolution of components simplifies the system while allowing teams to always have the parts they need to complete a build.

    Robits is an excellent cross-program system utilizing many common features and components FIRST Robotics Competition teams have grown to prefer.

    To learn more, watch this video: Introducing Robits with Allison Kneisler

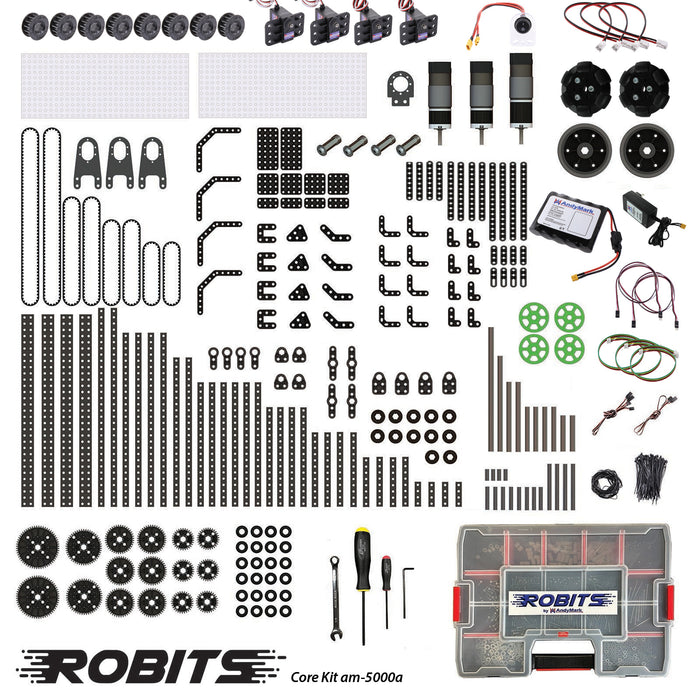

  • Included Items:

    Electronics:

    • 2 - Programmable Torque Servo (am-4954)
    • 2 - Programmable Speed Servo (am-4955)
    • 2 - 24 in. PWM Cable (am-0694a)
    • 2 - 36 in. PWM Cable (am-0695a)
    • 3 - 12 inch Motor Encoder Cable (am-3926b-1200)
    • 1 - FTC Power Switch with bracket (am-4969)
    • 1 - FTC Flat Pack Battery (am-5290)
    • 1 - FTC Battery Charger (am-5473)
    • 2 - NeveRest Hex 19.2 (am-5442)
    • 1 - NeveRest Hex 50.9 (am-5443)
    • 3 - 12 inch Motor Power Wire (am-5198-1200)

    Structure:

    • 2 - 15.5×6×1/32 Perforated PC (am-4964)
    • 3 - Robits 80-100T Motor Mount (am-5017)
    • 1 - Robits Motor Mount (Side 2 Hole) (am-5012)
    • 4 - Robits End Bushing Carrier (am-5014)
    • 4 - Robits Side Bushing Carrier (am-5013)
    • 4 - Robits Side Shaft Carrier (am-5015)
    • 4 - Robits Double End Shaft Carrier (am-5016)
    • 4 - 10-32 Female Threaded 1 in. Long 0.375 in. Round Standoff (am-1701)
    • 8 - 10-32 Female Threaded 2 in. Long 0.375 in. Round Standoff (am-1702)
    • 4 - 10-32 Female Threaded 4 in. Long 0.375 in. Round Standoff (am-1704)
    • 4 - Robits 0.5×0.5×2.0 Tube (am-5001-0200)
    • 4 - Robits 0.5×0.5×4.0 Tube (am-5001-0400)
    • 4 - Robits 0.5×0.5×6.0 Tube (am-5001-0600)
    • 4 - Robits 0.5×0.5×8.0 Tube (am-5001-0800)
    • 6 - Robits 0.5×0.5×10.0 Tube (am-5001-1000)
    • 4 - Robits 0.5×0.5×12.0 Tube (am-5001-1200)
    • 2 - Robits 0.5×0.5×14.0 Tube (am-5001-1400)
    • 2 - Robits 0.5×0.5×16.0 Tube (am-5001-1600)
    • 4 - Robits 1.0×1.0×15.5 Tube (am-5002-1550)
    • 4 - Robits Angle Gusset (45°) (am-5010_045)
    • 4 - Robits Angle Gusset (135°) (am-5010_135)
    • 4 - Robits Slotted Beam (am-5011_slot)
    • 4 - Robits 1×4 Beam (am-5011_1x4)
    • 4 - Robits 1×8 Beam (am-5011_1x8)
    • 4 - Robits 1×12 Beam (am-5011_1x12)
    • 4 - Robits 1×16 Beam (am-5011_1x16)
    • 8 - Robits 2×3 L Gusset (am-5004_2x3)
    • 8 - Robits 3×3 Corner Gusset (am-5005_3x3)
    • 4 - Robits 5×5 Corner Gusset (am-5005_5x5)
    • 4 - Robits 2×4 Plate (am-5006_2x4)
    • 4 - Robits 4×4 Plate (am-5006_4x4)
    • 2 - Robits 4×8 Plate (am-5006_4x8)
    • 4 - Robits 3x3 U Gusset (am-5008_3x3)

    Motion:

    • 16 - 14 Tooth 0.375IN Hex Bore HTD Pulley Half (am-4960_half)
    • 24 - Robits Motion Bushing for 375IN Hex (am-5021)
    • 6 - 30 Tooth 20DP 0.375 in. Hex Bore Plastic Gear (am-5020_30)
    • 6 - 40 Tooth 20DP 0.375 in. Hex Bore Plastic Gear (am-5020_40)
    • 2 - 50 Tooth 20DP 0.375 in. Hex Bore Plastic Gear (am-5020_50)
    • 2 - 60 Tooth 20DP 0.375 in. Hex Bore Plastic Gear (am-5020_60)
    • 2 - 225-5m-09 Belt (45 Tooth) (am-3273)
    • 2 - 300-5m-09 Belt (60 Tooth) (am-4902)
    • 2 - 375-5m-09 Belt (75 Tooth) (am-4958)
    • 2 - 605-5m-09 Belt (121 Tooth) (am-4959)
    • 2 - Robits 0.375 in. Hex Shaft 3 in. Long (am-5003-0300)
    • 4 - Robits 0.375 in. Hex Shaft 4 in. Long (am-5003-0400)
    • 2 - Robits 0.375 in. Hex Shaft 6 in. Long (am-5003-0600)
    • 1 - Robits 0.375 in. Hex Shaft 8 in. Long (am-5003-0800)
    • 1 - Robits 0.375 in. Hex Shaft 10 in. Long (am-5003-1000)
    • 4 - 5 mm Hex to 375IN Hex Shaft Adapter (am-4957-0100)
    • 4 - 2 in. Compliant Wheels (Green) (am-3571_green)
    • 2 - 3 in Omni Wheel (Single) (am-4967a)
    • 2 - 3 in. Stealth Wheel (Gray) (am-4718_gray)

    Hardware:

    • 24 - Spacer, 0.375 OD x 0.194 ID x 0.25 Long Nylon (am-1700)
    • 24 - Spacer, 0.375 OD x 0.194 ID x 0.50 Long Nylon (am-1697)
    • 24 - Spacer, 0.375 OD x 0.194 ID x 0.75 Long Nylon (am-4107)
    • 24 - Spacer, 0.375 OD x 0.194 ID x 1.00 Long Nylon (am-1696)
    • 24 - Spacer, 0.430 ID x 0.500 OD x 0.250 Long Aluminum (am-1698)
    • 24 - Spacer, 0.430 ID x 0.500 OD x 0.500 Long Aluminum (am-1699)
    • 48 - Screw, SHCS, 10-32 x 0500 (am-1002)
    • 48 - Screw, SHCS, 10-32 x 0750 (am-1047)
    • 48 - Screw, SHCS, 10-32 x 1000 (am-1056)
    • 48 - Screw, SHCS, 10-32 x 1250 (am-1041)
    • 48 - Screw, SHCS, 10-32 x 1500 (am-1014)
    • 24 - Screw, SHCS, 10-32 x 1750 (am-1048)
    • 24 - Screw, SHCS, 10-32 x 2000 (am-1049)
    • 12 - Screw, SHCS, 10-32 x 2250 (am-1156)
    • 100 - 10-32 Nylock Jam Nut (am-1063)
    • 100 - #10 Steel Washer (am-1026)
    • 16 - M3-0.5 x 8 mm Socket Head Cap Screw with Thread Patch (am-1500)
    • 100 - Cable Ties 4 in. (am-1589)
    • 50 - #33 Rubber Bands (am-5024_black)
    • 1 - Robits Ruler (am-5025)
    • 1 - Organizer Tote with Removable Dividers (am-4972)

    Tools:

    • 1 - Hex Driver, Ball End 5/32 in. with Handle (am-2751)
    • 1 - Hex Driver, Ball End 2.5 mm with Handle (am-3724)
    • 1 - Allen Wrench, 2.5 mm Hex L-Shaped (am-1288)
    • 1 - 3/8 Combination Wrench (am-4961)
    ----------------------------------------------------------------------------------------------------

  • CAD Files

    am-5000 Robits Core Kit.zip
    am-5000 ITD Roller Claw Example.STEP
    am-5000 Robits INTO THE DEEP Robot.STEP

    Example Code

    am-5000 Blocks_Into_The_Deep_Starterbot_Encoder_SWLimits.blk
    am-5000 Example Code.zip
    am-5000 Into_The_Deep_Starterbot_Encoder_SWLimits.java

    Guides

    am-5000a Robits Starter Chassis Guide.pdf
    am-5000a Robits Visual Parts List - Core Kit.pdf
    am-5000 Robits Curriculum.zip
    am-5000 Robits INTO THE DEEP Robot Assembly Guide.pdf
    am-5000 Robits Starter Drive Base Assembly Guide_9_7_23.pdf
    am-5000 Robits Starter Chassis Guide.pdf

    Additional Files

    am-5000 Robits_web_flyer.png

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
N
Nathan
Fantastic kit for building FTC sized robots with FRC students

Fantastic kit for building FTC sized robots with FRC students.

E
Evan
FRC Prototyping

The robits kit is great for quick iterations of FRC prototyping, we love using it to develop new mechanisms that have more flexibility compared to more traditional FRC parts.
