Fitting Adapter 1/8 NPT Male 1/4 NPT Female

am-2381

$2.90

This is a brass adapter fitting with a male 1/8" NPT thread and a female 1/4" NPT port. This fitting helps out an application when a device with a 1/4" NPT male thread needs to fit into a 1/8" NPT...Read More

View Full Details

Product Overview

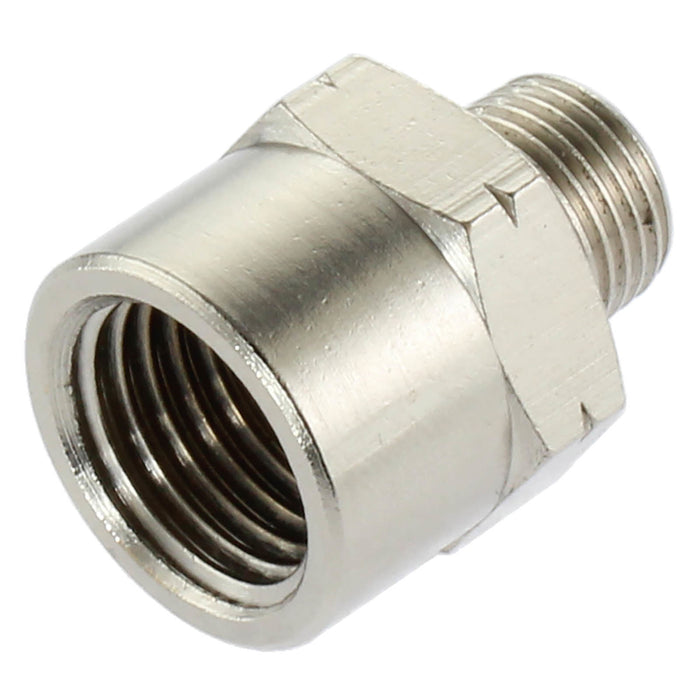

This is a brass adapter fitting with a male 1/8" NPT thread and a female 1/4" NPT port.

This fitting helps out an application when a device with a 1/4" NPT male thread needs to fit into a 1/8" NPT female port.


NPT THREAD
Note: NPT Thread Size is a nominal pipe size and does not represent the actual diameter
Pipe Size (NPT) 1/8 1/4 3/8 1/2
Thread Size (NPT) 1/8-27 1/4-18 3/8-18 1/2-14
Thread Measuring Diameter 3/8 Inch 1/2 Inch 5/8 Inch 3/4 Inch

Specifications

  • Hex Width: 0.67 in., turned with a 11/16 wrench
  • Length: 0.91 in.
  • Material: Brass with nickel plating
  • Operating Pressure: 230 psi
  • Port(s): 1/8 in. NPT male, 1/4 in. NPT female
  • Weight: 0.05 lbs
