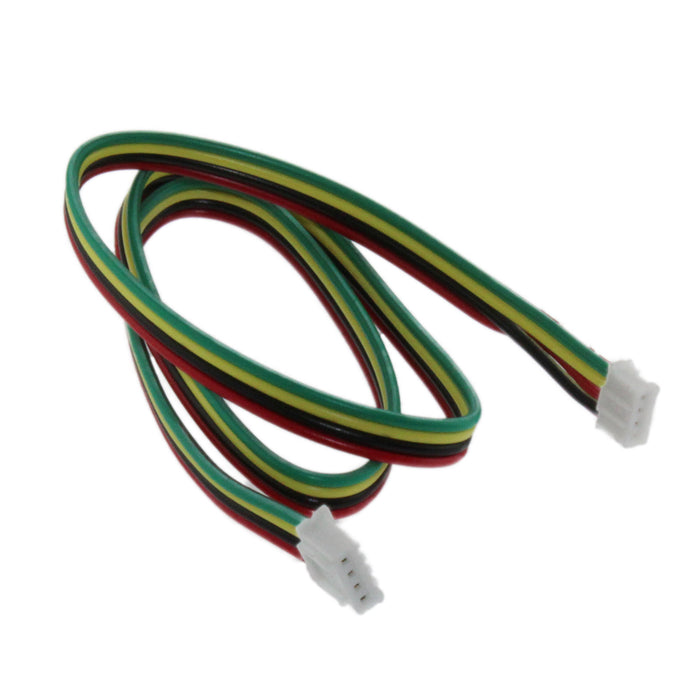

Encoder Cable for NeveRest Motor to REV Expansion Hub

am-3926

This product is currently unavailable for purchase.

This is the cable designed for the encoder that is pre-attached to the NeveRest Series of motors and gearmotors. It has a connector on the opposite end to directly interface between the NeveRest en...Read More

View Full Details

Product Overview

This is the cable designed for the encoder that is pre-attached to the NeveRest Series of motors and gearmotors. It has a connector on the opposite end to directly interface between the NeveRest encoder and the REV Expansion Hub.

Specifications

  • Length: 20 in.
  • Product Lifecycle: replaced by <a href="https://www.andymark.com/products/encoder-cable-for-neverest-motor-to-rev-expansion-hub-version-a">am-3926a</a>

2 reviews

  1. star empty_star empty_star empty_star empty_star 1.0 out of 5 stars

    Channels A and B are reversed

    The green and yellow cables to channels A and B are reversed. As a result, when the motor runs forward, the encoder counts backwards, and vice-versa. Clipping and resoldering fixed the direction issue, but seems to have compromised the encoder count also. This video shows the issue: https://www.youtube.com/watch?v=5rs7j9yyFLE Would you consider changing your product so that the encoders count up correctly? Thanks, Jeff Cagle Vector 5233

    J C

  2. star star star empty_star empty_star 3.0 out of 5 stars

    Looks nice but signal wires appear crossed

    Robot runs with the adapter, but when we swapped in these wires the encoder read opposite the direction the robot moved. Since competition is today team went back to using the adapter.

    M J
