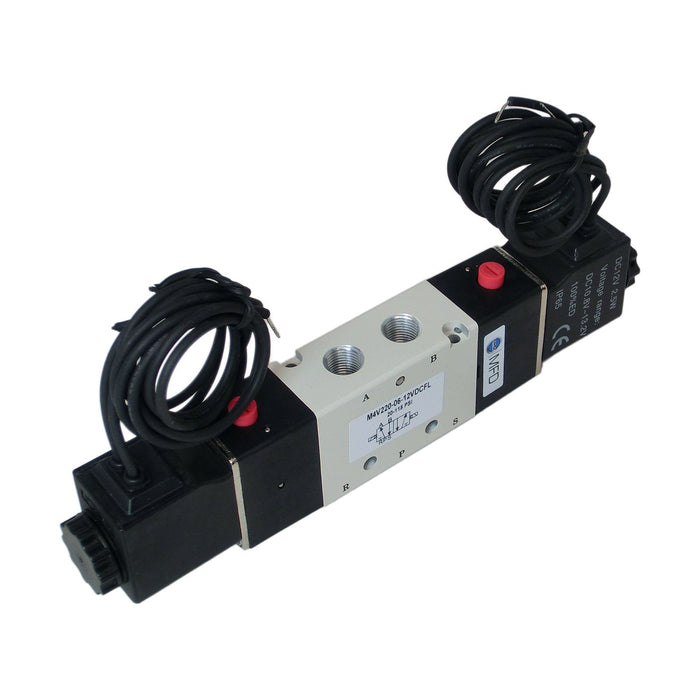

Double Solenoid Valve Mead 1/8 NPT - am-3324 - migrated

Double Solenoid Valve Mead 1/8 NPT

by AndyMark
$58.00 USD - $58.00 USD
$58.00 USD
$58.00 USD
$58.00 USD - $58.00 USD
$58.00 USD
This is a double solenoid pneumatic valve without fittings, manufactured by Mead Fluid Dynamics, Inc.
SKU am-3324
  • Description
  • Specifications
  • Documentation

  • Double solenoid pneumatic valve without fittings, manufactured by Mead Fluid Dynamics, Inc.

    Mead part number: M4V220-06-12VDCFL

    NPT THREAD
    Note: NPT Thread Size is a nominal pipe size and does not represent the actual diameter
    Pipe Size (NPT) 1/8 1/4 3/8 1/2
    Thread Size (NPT) 1/8-27 1/4-18 3/8-18 1/2-14
    Thread Measuring Diameter 3/8 Inch 1/2 Inch 5/8 Inch 3/4 Inch
    • Flow Rating: 0.78 Cv
    • Maximum Pressure: 215 psi
    • Maximum Response Time: 50 ms
    • Operating Pressure: 22 - 116 psi
    • Pilot Air Supply: Internal
    • Port(s): 1/8 in. NPT
    • Size: 170 mm x 67 mm x 22 mm
    • Style: In-line, individual
    • Valve Function: 5 Port-2 Position
    • Voltage: 12 VDC
    • Weight: 0.72 lbs.

  • CAD Files

    am-3324 Double Solenoid Valve Mead.stp

    Layout Prints

    am-3324 Double Solenoid Valve Mead.pdf
