Climber in a Box Winch Kits

$46.50

Select option to view product code

This winch kit is the included winch in the Climber in a Box kit. This winch kit is available in two flavours - one compatible to be installed outside of 2" square box tube (found within our 2 Stag...Read More

0 reviews

Write a Review

View Full Details

Product Overview

This winch kit is the included winch in the Climber in a Box kit. This winch kit is available in two flavours - one compatible to be installed outside of 2" square box tube (found within our 2 Stage Climber in a Box,) and the other for 1.5" square box tube (found within our 1 Stage Climber in a Box.) These kits come with everything you need to make a winch with your own planetary gearbox or supplied powertrain.

Note: Your powertrain solution must include a 2" long 1/2" hex shaft as it's output, and be compatible with the 2" diameter bolt circle face mount interface that the winch plate is designed around. These features are found on our Blue Sport Gearboxes with an additional 2" long output shaft.

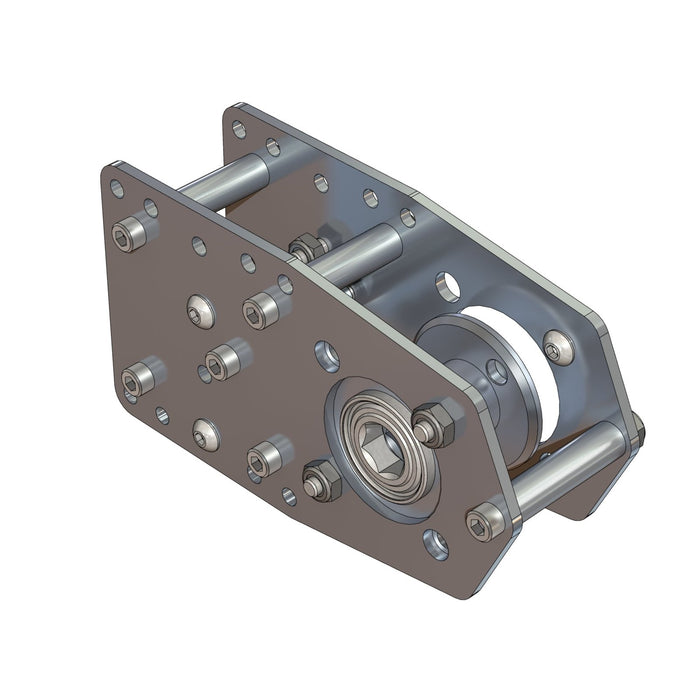

Items Included in am-4663:

  • 2 - Winch Plate (am-4646)
  • 1 - 1.125 in. Bearing Plate (am-3722)
  • 5 - 0.192 in. ID 0.375 in. OD 1.5 in. Long Aluminum Spacer (am-1599)
  • 1 - 0.125 in. 10 ft. Black or Grey Rope (am-4559)
  • 6 - 10-32 x 2 in. Socket Head Cap Screw (am-1049)
  • 12 - 10-32 Nylock Jam Nut (am-1063)
  • 1 - 0.5 in. Hex ID Shielded Flanged Bearing (FR8ZZ-HexHD) (am-2986)
  • 8 - 10-32 x 0.5 in. Button Head Cap Screw (am-1512)
  • 1 - 0.192 in. ID 0.375 in. OD 1-5/16 in. Long Aluminum Spacer (am-1601)
  • 1 - Winch Spool, 2 pieces (am-4647)

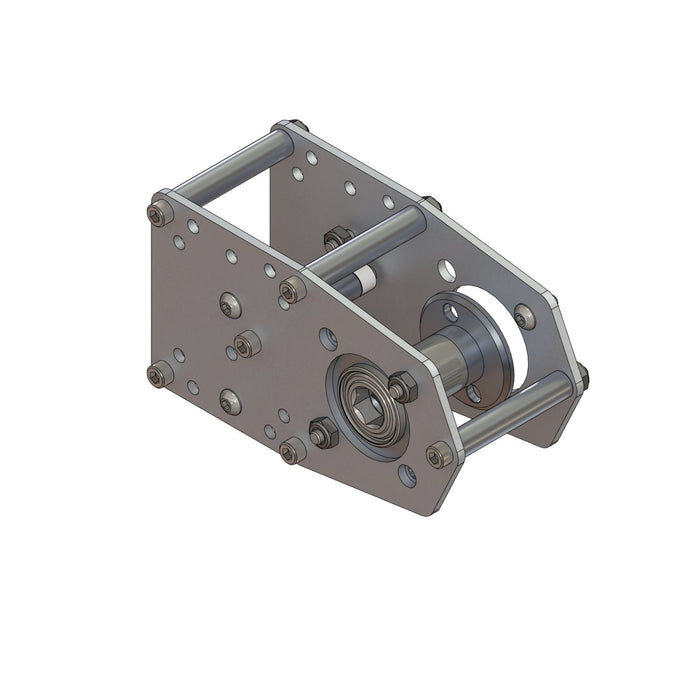

Items Included in am-4664:

  • 2 - Winch Plate (am-4646)
  • 1 - 1.125 in. Bearing Plate (am-3722)
  • 5 - 0.192 in. ID 0.375 in. OD 2 in. Long Aluminum Spacer (am-1600)
  • 1 - 0.125 in. 10 ft. Black or Grey Rope (am-4559)
  • 6 - 10-32 x 2.5 in. Socket Head Cap Screw (am-1024)
  • 12 - 10-32 Nylock Jam Nut (am-1063)
  • 1 - 0.5 in. Hex 0.5 in. Long Spacer (am-3948-500)
  • 1 - 0.5 in. Hex ID Shielded Flanged Bearing (FR8ZZ-HexHD) (am-2986)
  • 8 - 10-32 x 0.5 in. Button Head Cap Screw (am-1512)
  • 2 -  0.192 in. ID 0.375 in. OD 0.25 in. Long Aluminum Spacer (am-4209)
  • 1 - 0.192 in. ID 0.375 in. OD 1-5/16 in. Long Aluminum Spacer (am-1601)
  • 1 - Winch Spool, 2 pieces (am-4647)
