CKD Single Solenoid Valve

by AndyMark

$69.00 USD - $69.00 USD

$69.00 USD

$69.00 USD

$69.00 USD - $69.00 USD

$69.00 USD

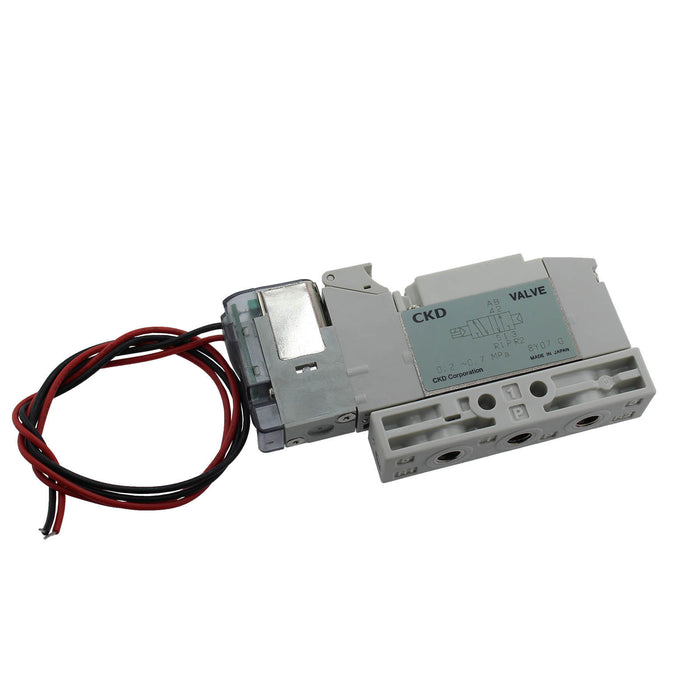

This is an single solenoid, air-piloted, compact valve made by CKD.

Description
Specifications
Documentation

It's great for efficiently providing air to a small to medium sized actuator on mobile robots.

In order to make this work, you will also need three (3) M5 fittings (NOT INCLUDED) and some tubing (also NOT INCLUDED).

Link to CKD valve catalog

CKD part number: 4GA110R-M5-4
- Cable Length: 1 ft.
- Flow Rate: 0.3 Cv
- Manufacturer: CKD
- Manufacturer Part #: 4GA110-M5-4
- Maximum Pressure: 125 psi
- Port(s): M5 / 10-32
- Voltage: 12 VDC
- Weight: 0.1 Lbs
- Width: 12 mm
CAD Files
am-2344a CKD Single Solenoid Valve.STEP
Layout Prints
am-2344a CKD Single Solenoid Valve.pdf
