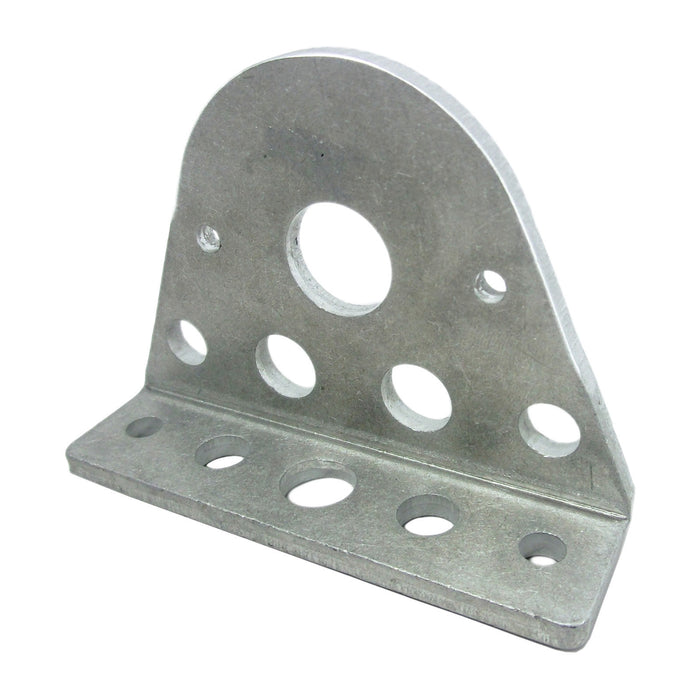

CIM Motor Bracket

am-2488

This product is currently unavailable for purchase.

This bracket is used for mounting a CIM motor easily to our C-Channel.

View Full Details

Product Overview

This bracket is used for mounting a CIM motor easily to our C-Channel.

Specifications

  • Depth: 1.188 in.
  • Height: 2.813 in.
  • Length: 3.75 in.
  • Material: Aluminum
  • Product Lifecycle: replaced by <a href='https://www.andymark.com/products/bearing-and-motor-mount-bracket'>am-4244</a>
  • Thickness: 0.188 in.
  • Weight: 0.17 lbs

Documents

Layout Print(s)
CAD File(s)
Don't see what you need?

Returns

Returns are accepted within 30 days of purchase.
View our return policy here.

Recommendations

CIM Sport Motor Block

am-3770

$11.00

CIM-Sim Gearbox Motor Plate

am-0926

$9.25

$5.00

2.5 in. CIM Motor

$33.00 – $45.00

CIM Motor Cooler

am-2865

$9.00

7 reviews

  1. star star star star star 5.0 out of 5 stars

    Good Bracket, but Over priced

    This is a good sturdy bracket for mounting CIM motors, or can be drilled out for pneumatic cylinders or other items. Mounts to the robot chassis or standard 1 or 1-1/2 inch extrusion. It also serves as a support for a bearing for the other end of the motor driven shaft. Price is quite high for a mass stamped part.

    LR from SYKESVILLE

    Verified Purchaser

  2. star star star star star 5.0 out of 5 stars

    Review

    5 Stars

    SG from Columbus

  3. star star star star star 5.0 out of 5 stars

    Review

    5 Stars

    RS from Glen Rose

  4. star star star star star 5.0 out of 5 stars

    Good Service

    Good Service and fast delivery. Thank you

    AA from Dammam

  5. star star star star star 5.0 out of 5 stars

    CIM motor bracket

    Very useful indeed! A thicker, beefier bracket that can take the torque. We use these for rapid prototyping as well as competition.

    RC from Mount Vernon

  6. star star star star star 5.0 out of 5 stars

    Review

    5 Stars

    MT from Plainfield

  7. star star star star star 5.0 out of 5 stars

    Review

    5 Stars

    KK from Mississauga
