AndyMark XT30 Distribution Board

$29.00 – $52.00

Select option to view product code

Power distribution for FIRST Tech Challenge teams and hobbyists from AndyMark is here! This beautifully manufactured board is shown assembled, but ships as a kit of items. We save the fun of buildi...Read More

View Full Details

Product Overview

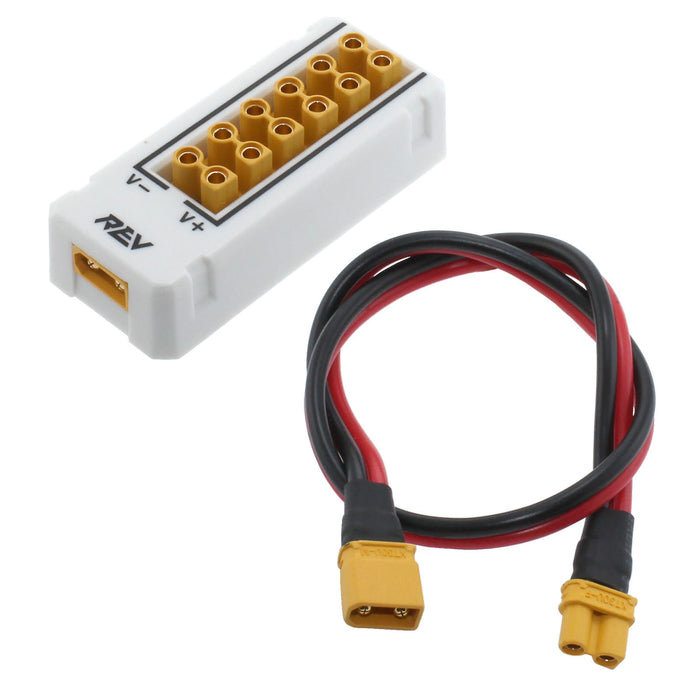

Power distribution for FIRST Tech Challenge teams and hobbyists from AndyMark is here! This beautifully manufactured board is shown assembled, but ships as a kit of items. We save the fun of building for you, but we have done all the tedious soldering for you.

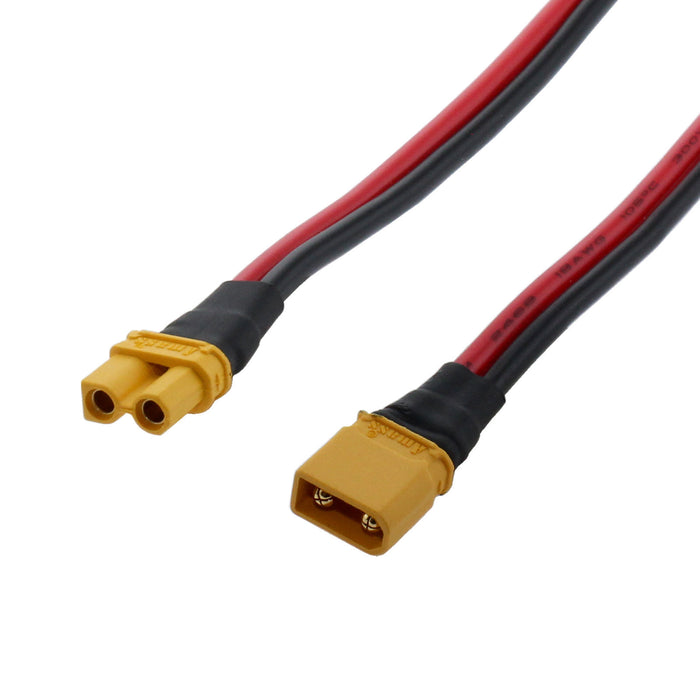

XT30 connectors are designed to have a reliably firm hold and provide a quality connection. With this power block easily fuse and distribute power from an XT30 power source to other XT30 devices. This board features 1 Male XT30 unfused input and 6 fused XT30 Female outputs.

Standard Mini fuses or breakers are required on each output.

FIRST Tech Challenge Usage:

FIRST Tech Challenge teams, are you looking to power more than just your Expansion Hub directly from your battery? This board, when used with 10A or 20A fuses, can power additional SPARKminis to control more motors than you are able to with the Expansion Hub alone. The board also features #6-32 mounting holes on a 16mm grid so it's easy to mount to your favorite FTC structure system.

Specifications

  • Input: 1 XT30 Male
  • Mounting: 10-32 holes on 3 inch grid, 6-32 holes on a 64mm x 32mm grid
  • Outputs: 6 XT30 Female
  • Overall Height: 0.94 in. Without Fuses
  • Overall Length: 3.7 in.
  • Overall Width: 1.83 in.
