AM14U Family Wedge Plate

am-3356

$51.00

$24.00

This sheet metal plate is designed to replace the end plate of the AM14U3 drive chassis, and has a 45 degree wedge to help get over obstacles. It's designed similar to the AM14U3 End Plate (am-295...Read More

View Full Details

Product Overview

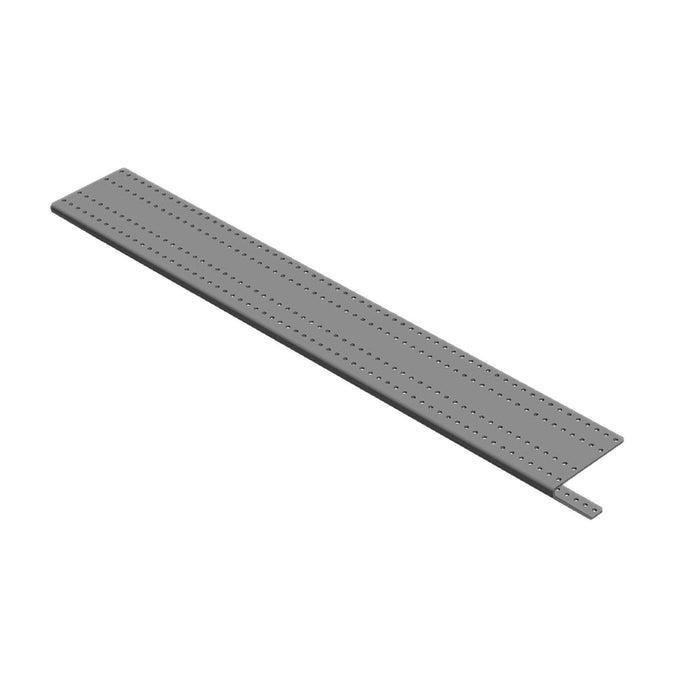

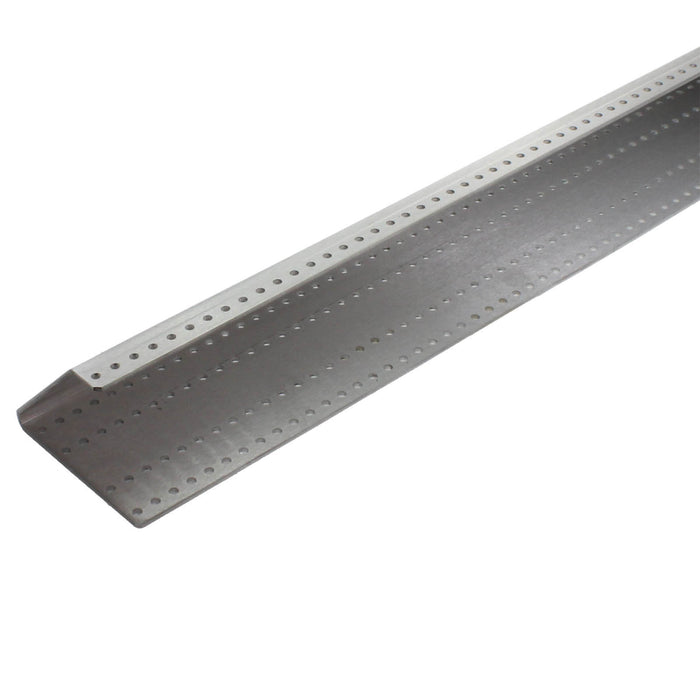

This sheet metal plate is designed to replace the end plate of the AM14U3 drive chassis, and has a 45 degree wedge to help get over obstacles. It's designed similar to the AM14U3 End Plate (am-2953a), but it has that nice 45 degree wedge. This part provides structure connecting the Inner and Outer plate of the AM14U3 and provides a surface to mount upper structures and AM14U3 bumper brackets. The pink colored part in the CAD picture shown above is this part, mounted to the front of an AM14U3 chassis which is not included.

Specifications

  • Height: 3.165"
  • Hole Size: 0.210"
  • Length: 31"
  • Lower Flange Length: 1.0"
  • Lower Hole Pattern: 0.5" Spacing
  • Material: 5052 Aluminum
  • Thickness: 0.125"
  • Upper Flange Length: 4.79"
  • Upper Hole Pattern: Four rows 1.0" apart, 0.5" between holes in each row.
  • Weight: 3.59 lbs

4 reviews

  1. star star star star star 5.0 out of 5 stars

    Broke defenses in STRONGHOLD

    We were going to make our own wedge until AM announced this. A must for getting over the rock wall and the moat. Might also use this inverted to help take in a large ball.

    GM from Slidell

  2. star star star star star 5.0 out of 5 stars

    Review

    5 Stars

    DD from Winter Park

  3. star star star empty_star empty_star 3.0 out of 5 stars

    "How does this work with bumpers?"

    "How does this work with bumpers? (AndyMark response: The front series of holes allow for the same standard bumper mounting hardware as used on a standard AM14U3.)"

    Ay

  4. star star star star star 5.0 out of 5 stars

    "How do bumpers work with this?"

    "How do bumpers work with this?"

    Ay
