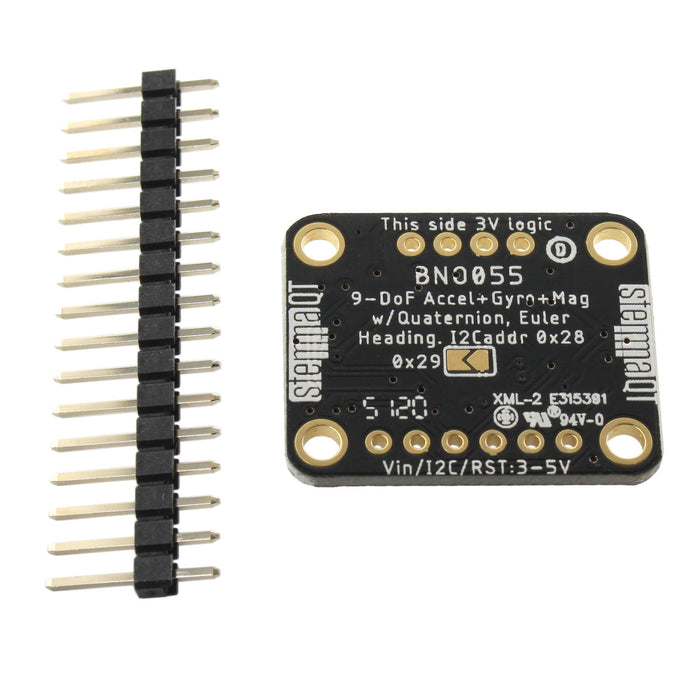

Absolute Orientation IMU Fusion Breakout

am-4565

$33.00

This item is restricted for shipment in some countries. Please check international shipping restrictions before ordering. This absolute marvel of an orientation sensor makes taking orientation data...Read More

0 reviews

Write a Review

View Full Details

Product Overview

This item is restricted for shipment in some countries. Please check international shipping restrictions before ordering.


This absolute marvel of an orientation sensor makes taking orientation data and turning into an actual 3D space easy! The Absolute Orientation IMU Fusion Breakout in a Stemma QT format has a smart 9-DOF sensor that does the sensor fusion all on its own.

The Absolute Orientation IMU Fusion Breakout can output the following sensor data:

Absolute Orientation (Euler Vector, 100Hz) - Three axis orientation data based on a 360° sphere
Absolute Orientation (Quaternion, 100Hz) - Four point quaternion output for more accurate data manipulation
Angular Velocity Vector (100Hz) - Three axis of 'rotation speed' in rad/s
Acceleration Vector (100Hz) - Three axis of acceleration (gravity + linear motion) in m/s^2
Magnetic Field Strength Vector (20Hz) - Three axis of magnetic field sensing in micro Tesla (uT)
Linear Acceleration Vector (100Hz) - Three axis of linear acceleration data (acceleration minus gravity) in m/s^2
Gravity Vector (100Hz) - Three axis of gravitational acceleration (minus any movement) in m/s^2
Temperature (1Hz) - Ambient temperature in degrees Celsius

Here you can find a  tutorial on assembly, wiring, CircuitPython & Arduino libraries, and Processing graphical interface, and more!

Specifications

  • Dimensions: 2.57 in., 1.9 in., 0.19 in.
  • Manufacturer: Adafruit Industries
  • Manufacturer Part #: 4646
  • Weight: 0.16 oz
