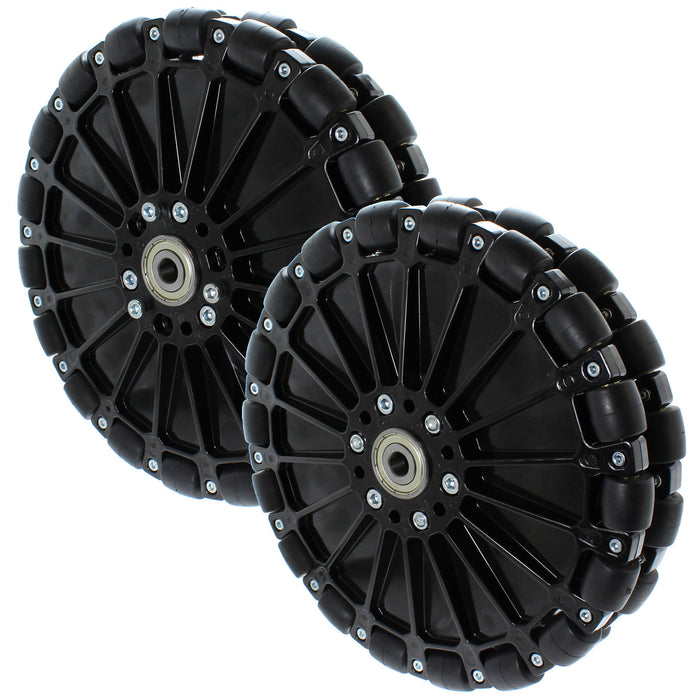

8 in. Dualie Plastic Omni Wheel

$64.00 – $74.00

Select option to view product code

The 8 in. Dualie Plastic Omni Wheel is a combination of two single 8 in. Omni wheels bolted together.  This revision has higher quality rubber rollers than the previous version. Choose from ...Read More

View Full Details

Product Overview

The 8 in. Dualie Plastic Omni Wheel is a combination of two single 8 in. Omni wheels bolted together.
This revision has higher quality rubber rollers than the previous version.


Choose from one of 3 options above:
  • No Bearings (For use with a Hub)
  • 3/8 in. Bearings pre installed Qty 3 of am-0209
  • 1/2 in. Bearings pre installed Qty 2 of am-0029 installed in the interior and Qty 2 of am-0030 installed on the outside

Usage With Axle and Hub:

  • If you wish to drive this wheel with an axle and hub, you can pick your hub by fitting any of the AndyMark hubs to this wheel. Hubs are not included with this wheel. If this is your choice, then no bearing is needed. To install a hub onto this wheel, use #10 screws and nuts to replace the ones used to hold the wheel together.

Usage With Sprockets and Bearings:

  • If you wish to drive this wheel with a sprocket, then the sprocket needs to be attached to the side of the wheel with #10 screws and nuts. You will also need to press ball bearings into the wheel so that it may spin on a shaft or bolt. The ball bearings must have a 1.125 in. od. For best performance you'll want to add 3-4 bearings, the two wheels will need to be removed from each other for bearings to be added in the middle.
Included Hardware:
  • 4 - 8 in. Plastic Omni Wheel Webs (am-0079)
  • 36 - Black SBR Rollers (am-0049a)
  • 36 - 1 x 1/8 in. Steel Dowel Pins (am-1019)
  • 72 - Omni-roller sleeves (am-0050)
  • 9 - M5-0.8 x 20 mm Socket Head Cap Screw (am-1020)
  • 36 - M3 - 0.5 x 10 mm Socket Head Cap Screw (am-1021)
  • 12 - M5-0.8 Nylock Nut (am-1022)
  • 36 - M3-0.5 Nylock Nut (am-1023)
  • 3 - M5 x 0.8mm 50 mm Socket Head Cap Screw (am-1598)

Specifications

  • Bearings Optional: 1/2 in., 3/8 in.
  • Bolt Pattern: 6 hole on a 1.875 in. diameter bolt circle
  • Bore: 1.125 in. diameter bore, 1/4 in. deep on either side, 0.95 in. diameter thru hole
  • Diameter: 8 in.
  • Load Capacity: 120 lbs (rollers don't spin pas this weight)
  • Material: Black Polycarbonate, Brass
  • Roller Axle: Steel Dowel Pin
  • Roller Durometer: 80A
  • Rollers: 36
  • Weight: 2.2 lbs
  • Width Across Middle: 2.04 in.
