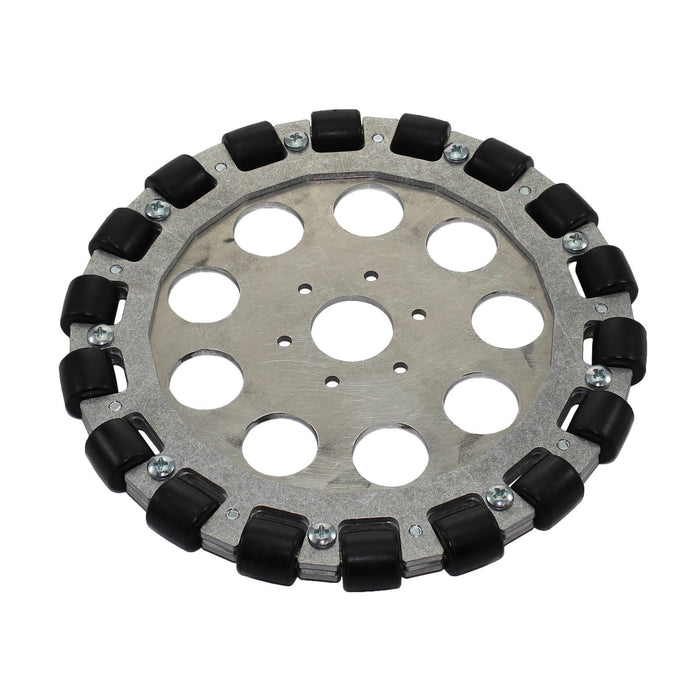

8 in. Aluminum Omni Wheel
8 in. Aluminum Omni WheelThese wheels are light, durable and allow for omni-directional movement. They will bend under severe impact, but can be easily repaired. The center bore is sized to receive...Read More
0 reviews
Write a ReviewProduct Overview
8 in. Aluminum Omni Wheel
These wheels are light, durable and allow for omni-directional movement. They will bend under severe impact, but can be easily repaired. The center bore is sized to receive a 1+1/8" diameter flange bearing (FR8ZZ or am-0573) in a press fit manner.
Included Hardware:
With Bearing:
These wheels are light, durable and allow for omni-directional movement. They will bend under severe impact, but can be easily repaired. The center bore is sized to receive a 1+1/8" diameter flange bearing (FR8ZZ or am-0573) in a press fit manner.
Included Hardware:
- Two - 8" Outer Aluminum Omni Rings
- One - 8" Inner Aluminum Omni Plate
- Eighteen - Black SBR Rollers
- Eighteen - Steel Dowel Pins
- Thirty-Six - Brass Omni-roller Sleeves
- Eighteen - Individual #10-32x3/8" Button Head Phillips Screws
With Bearing:
- Wheels can be driven by 1 hub or they can ride on one 1/2" id ball bearing (FR8ZZ). These need to be purchased separately if this wheel is purchased.
- Mount sprockets to these wheels with Hardware Kit #1
- Mount hubs to these wheels with Hardware Kit #2
Specifications
- Bolt Pattern: 6 hole 1.875 in. diameter bolt circle
- Bore: 1.124 in. diameter bore
- Diameter: 8 in.
- Load Capacity: 50 lbs
- Material: 3 - 1/8 in. thick aluminum, Brass
- Product Lifecycle: discontinued, <a href='/products/8-in-plastic-omni-wheel-1'>see the plastic option am-0048a</a>
- Roller Axle: Steel Dowel Pin
- Roller Durometer: 80A
- Rollers: 18
- Weight: 0.96 lbs
- Width Across Middle: 0.123 in.
