574 ml Air Reservoir with Push Connect Fittings

am-2649

1 - 4 units: $18.00

5 - 9 units: $17.00

10 or more units: $16.00

Please Note: If you have received a faulty air tank (damaged push to connect fittings) please contact Scott Lamb of Clippard Technical Sales at (513)-521-4445 (ext 1213). This is a plastic...Read More

View Full Details

Product Overview

Please Note:
If you have received a faulty air tank (damaged push to connect fittings) please contact Scott Lamb of Clippard Technical Sales at (513)-521-4445 (ext 1213).

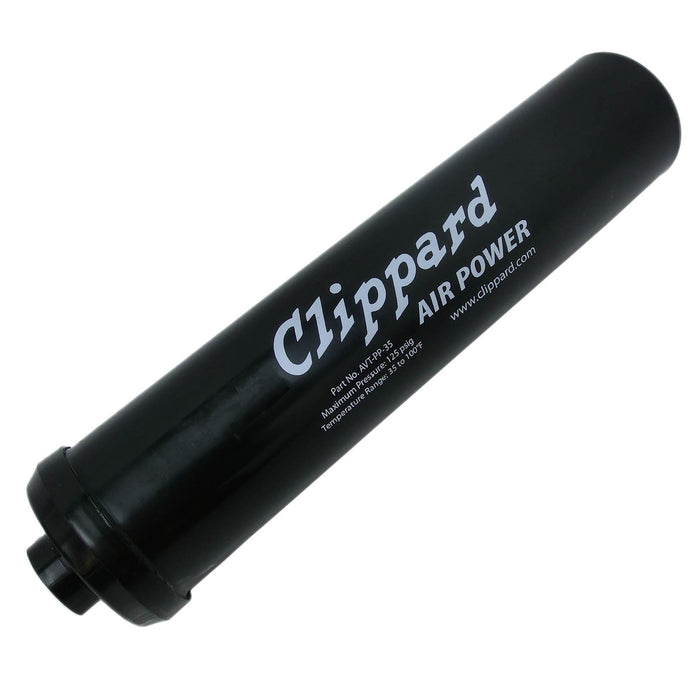

This is a plastic air tank accumulator holding 574 ml, manufactured by Clippard.

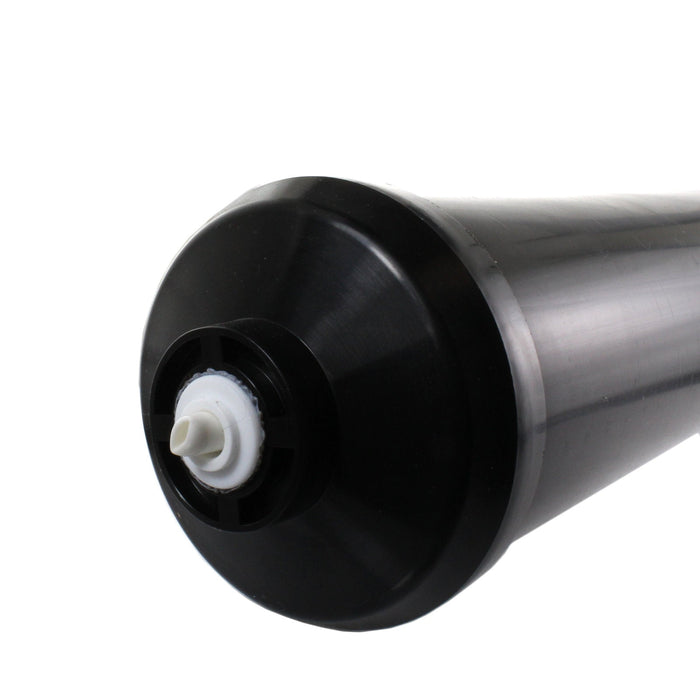

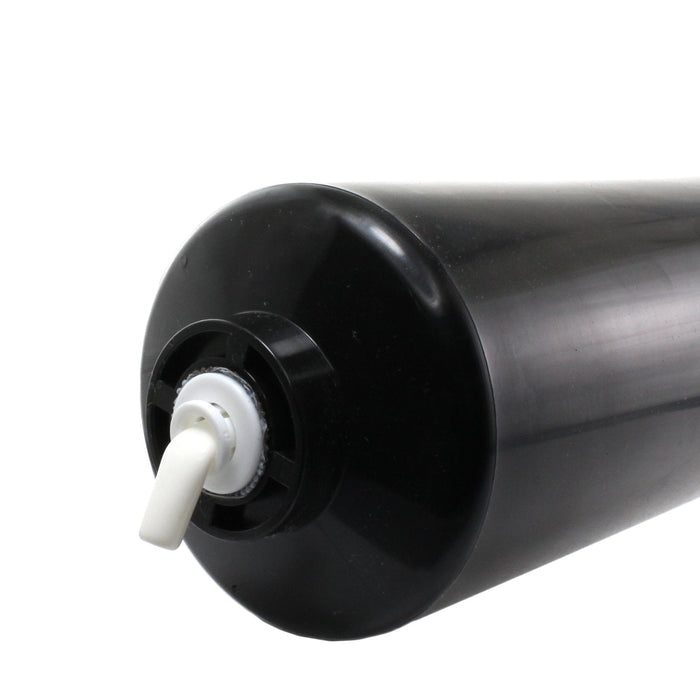

This black plastic tank has been improved over the last white plastic design from Clippard. Each end now has molded in plastic push-in fittings. These eliminate the need to have metal fittings to be screwed in to the tank, and omits the uncertainty of over-tightening a fitting into the tank.

  • Manufacturer: Clippard
  • Manufacturer Part Number: AVT-PP-35
  • Weight: 0.64 lbs
  • Capacity: 574 ml (35 cu. inch)
  • Ports: Two 1/4" od tube push-in fittings
  • Maximum pressure: 125 psig
  • Temperature rating: 35 to 100 F
  • Length: 12.25"
  • Diameter: 2.5" (@ main tank), 2.75" max

A mounting bracket is available to order (am-2008), but is not included when ordering just this item.



Specifications

  • Diameter: 2.5 in. (@ main tank),2.75 in. max
  • Length: 12.25 in.
  • Manufacturer: Clippard
  • Maximum Pressure: 125 Psi
  • Weight: 0.64 Lbs

Documents

Don't see what you need?

22 reviews

  1. star star star star star 5.0 out of 5 stars

    Good quality

    Did what I needed it to do

    BB from HARTLAND

    Verified Purchaser

  2. star star star star empty_star 4.0 out of 5 stars

    Review

    4 Stars

    MK from Chelsea

  3. star star star star star 5.0 out of 5 stars

    Review

    5 Stars

    PC from Wanamingo

  4. star star star star empty_star 4.0 out of 5 stars

    "Works"

    "Easy to connect, but sometimes the hose doesn't fully seat and it leaks. Just has to be pushed a little farther. Otherwise they're good."

    KM from Livonia

  5. star star star star star 5.0 out of 5 stars

    Review

    5 Stars

    MB from Woodland

  6. star star star star star 5.0 out of 5 stars

    Exactly what I expected.

    Worked great!

    RS from Frazier Park

  7. star star star star star 5.0 out of 5 stars

    Review

    5 Stars

    SL from Laurel

  8. star star star star star 5.0 out of 5 stars

    Clippard Air Tank

    Your service is always excellent. This is one of the best companies I have ever dealt with

    GB from Kent

  9. star star star star star 5.0 out of 5 stars

    Excellent

    I will buy this again. Good quality and the push to connect fittings work perfectly.

    SL from Greenwich

  10. star star star star star 5.0 out of 5 stars

    Tanked

    Clippard Air Tanks helped gave us the power we needed to pop the ball into the air for 10 pts. every time!

    PL from Boyne Falls

  11. star star star star star 5.0 out of 5 stars

    Review

    5 Stars

    MV from Northwood

  12. star star star star star 5.0 out of 5 stars

    Review

    5 Stars

    TP from Stephen

  13. star star star star star 5.0 out of 5 stars

    Review

    5 Stars

    TM from Reidsville

  14. star star star star empty_star 4.0 out of 5 stars

    Review

    4 Stars

    PP from Monroe

  15. star star star star star 5.0 out of 5 stars

    it fit

    Fits properly

    MA from Allegan

  16. star star star star star 5.0 out of 5 stars

    Review

    5 Stars

    MT from Detroit

  17. star star star star star 5.0 out of 5 stars

    Review

    5 Stars

    LC from Vista

  18. star star star star star 5.0 out of 5 stars

    Great alternative to the steel tanks

    Built in connectors are a good improvement

    DS from Fredericksburg

  19. star star star star star 5.0 out of 5 stars

    Good capacity and light weight

    Just what I needed.

    JB from St johnsbury

  20. star star star star empty_star 4.0 out of 5 stars

    "Plastic push-in fittings"

    "Hello, we are a Mexican team that competes in FRC, days ago we bought some pneumatic tanks like these, and when we opened one to test it, we saw that one of the plastic push-in fittings, where you connect the hoses (I believe that's how they're called) well that thing was loose, we checked it and we thought it was ok, so we connected the hose, and we tested it, but when we removed the hose that thing broke, and we thought we could use it without that thing, but then when we wanted to connect the hose again, we realized it was an essential part of the tank:( I'm writing this to ask if you have repositions, and if you do, how much do they cost and how long would they take to get here? I hope you answer quickly.. Another question is that we wanted to buy another tank but we want to know how much time would it take to get here? Thanks:) (AndyMark Response 1/22/15: Michelle please contact support@andymark.com so we can assist you.)"

    MS from Mexico City

  21. star star star star empty_star 4.0 out of 5 stars

    pnuematics done right

    I love the easy on push connectors. I also hate the connectors because if you lose one you are hosed.

    JC from Houston

  22. star star star star star 5.0 out of 5 stars

    Customer service

    Customer service was excellent. Just a note - if Purolator is used, the shipment would be much cheaper and faster. We order from other companies who use Purolator and the difference is noticeable.

    LB from Edmonton
