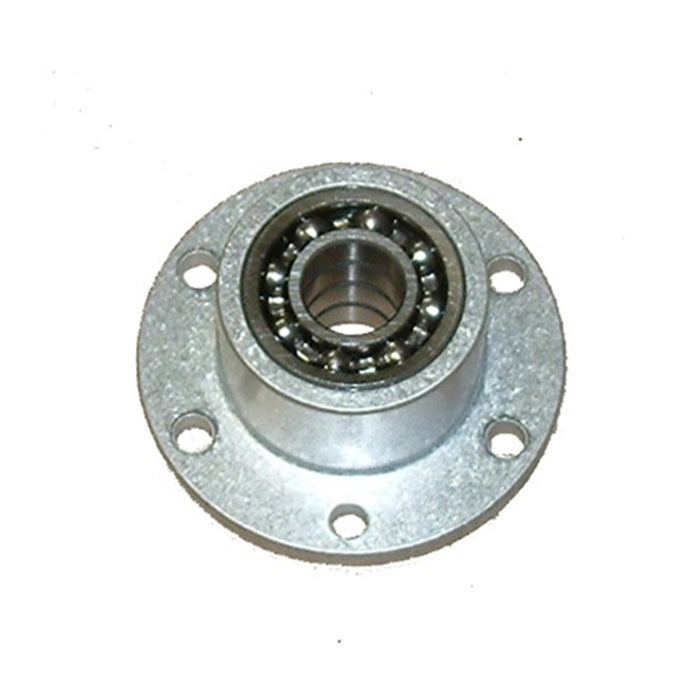

500 Bearing Hub

This product is currently unavailable for purchase.

This part is designed and fabricated in Indiana, USA.

View Full Details

Product Overview


This part is designed and fabricated in Indiana, USA.

Specifications

  • Bolt Circle: 0.2 in. diameter holes (6)
  • Bolt Pattern: 6 hole 1.875 in. diameter bolt circle
  • Bore: 4 - 0.5 in. bearings (R8)
  • Flange Diameter: 2.4 in.
  • Flange Thickness: 0.18 in.
  • Hub Diameter: 1.365 in.
  • Material: 6061 Aluminum
  • Overall Thickness: 1 in.
  • Product Lifecycle: replaced by <a href='/products/andymark-hub?sku=am-4117'>am-4117</a>
  • Weight: 0.4 lbs

Documents

CAD File(s)
Don't see what you need?

Returns

Returns are not accepted for this product.

Recommendations

4 reviews

  1. star star star star empty_star 4 out of 5 stars

    Review

    4 Stars

    CS from LUDINGTON

  2. star star star star star 5 out of 5 stars

    "Smooth Rolling"

    "All the bearings roll smooth in the hub and provide a well lubricated surface for shafts to roll with."

    PY from West Lafayette

  3. star star star star star 5 out of 5 stars

    "A great family of components....."

    "Before I found AndyMark I was about ready to buy similar parts from several of the large online hardware estores, which would have required a lot of work to get the piece parts ready to assemble as a set. All of the AndyMark components that I bought are ready to assemble, with matching bolt circles and hub diameters......which will save hours of machine work. Delivery was super fast! Will definitely be back to outfit the next phase of my project."

    TK from Holliston

  4. star star star star star 5 out of 5 stars

    Review

    5 Stars

    MS from Tampa
