42 Tooth HTD Pulley

by AndyMark
Sold out
$9.00 - $9.00
$9.00
$9.00
$9.00 - $9.00
$9.00
SKU am-2234
  • Description
  • Specifications
  • Documentation

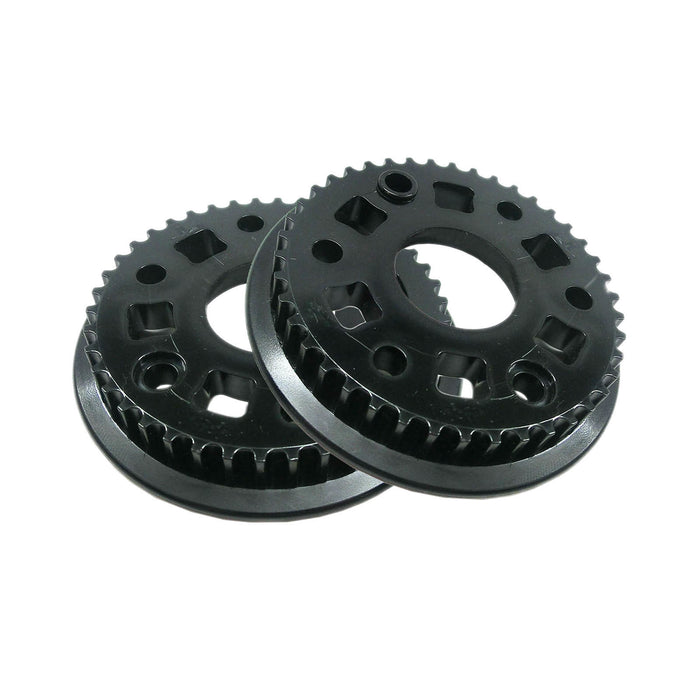

  • This is the 42 tooth pulley used in the AM14U family of chassis. It works with all 5 mm pitch HTD timing belts. This pulley has a 1.875 in. bolt circle making it easy to attach to many of our motion components. It also has a locking pattern that is compatible with many of our wheels.

    This pulley comes as two identical halves that mesh with each other to create one pulley that is the correct width for a 15 mm timing belt.

    Need to have two 15 mm belts on one pulley? Add in the 15 mm wide, 42 Tooth Pulley Extension (am-2813) and you can run two belts in two different directions.

    • Belt Profile: 5 mm pitch HTD timing belt, 15 mm wide
    • Bolt Pattern: 0.20 in. diameter holes, evenly spaced on a 1.875 in. diameter bolt circle
    • Bore: 0.95 in. diameter through hole, with two 1.125 in. diameter bearing pockets
    • Flange Diameter: 2.92 in.
    • Material: Black Polycarbonate
    • Outside Diameter: 2.59 in. (at outer tooth edge)
    • Pitch Diameter: 2.632 in.
    • Teeth: 42
    • Weight: 0.12 lbs.
    • Width: 0.89 in. (both halves assembled together)

  • CAD Files

    am-2234 42toothHTDpulleyHalfRev2.STEP

    Layout Prints

    am-2234 42 tooth HTD Pulley half.PDF

Customer Reviews

Based on 23 reviews
83%
(19)
13%
(3)
4%
(1)
0%
(0)
0%
(0)
K
KS from Milford
Great Pulley for Driving Wheels on Dead Axle Setup

These have been a great pullley to use for driving wheels on a dead axle setup. On 1519, we have used these pulleys with either 6' or 8' pneumatic tires on our 2016, 2018, and 2019 robots, and have never had a single pulley failure or problem. We bolt the pulleys directly into the wheels via the 1.875' bolt circle and typically use three 1/2' round bearings on dead axles, placing 2 bearings in the wheel and 1 bearing in the outer side of the pulley. They work great!
