35 Series Bearing Bore Plate Sprockets
$12.00 – $33.00
8 different offerings of our 35 Series Plate Sprockets. These are perfect for meshing with roller chain and finally getting that-thing-that-you-need-to-spin moving! These aluminum sprockets work...Read More
0 reviews
Write a ReviewProduct Overview
8 different offerings of our 35 Series Plate Sprockets. These are perfect for meshing with roller chain and finally getting that-thing-that-you-need-to-spin moving!
These aluminum sprockets work perfectly with any of our 6 hole hubs and mesh with #35 roller chain. They also work with other build systems that use a 2 in. bolt circle for mounting. The larger versions also have a mounting pattern compatible with 2x1 box tube usefull for making arms.
Note: Despite the prints, at this time tooth alignment to holes is not controlled on these sprockets.
| Part Number | Tooth Count | Bore | Pitch Diameter (in.) | Outside Diameter (in.) |
|---|---|---|---|---|

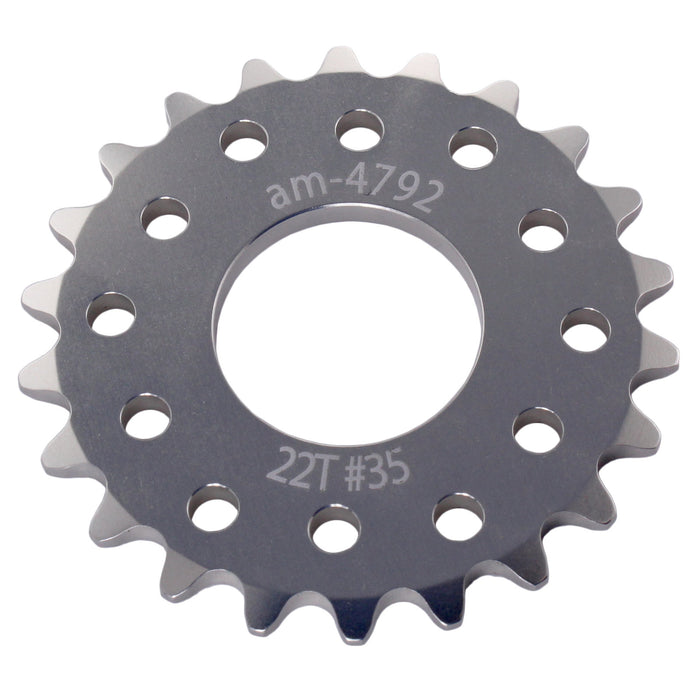

| am-4792 | 22 | 1.125 in | 2.635 | 2.840 |

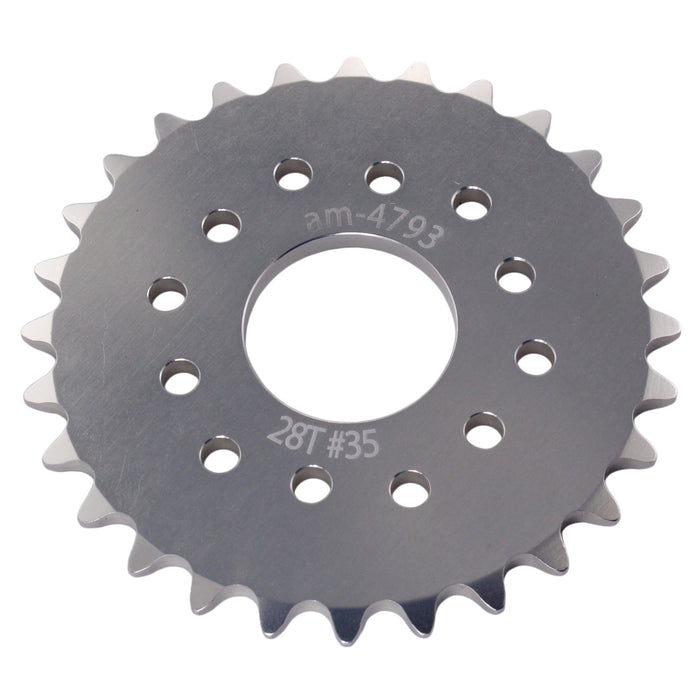

| am-4793 | 28 | 1.125 in | 3.349 | 3.558 |

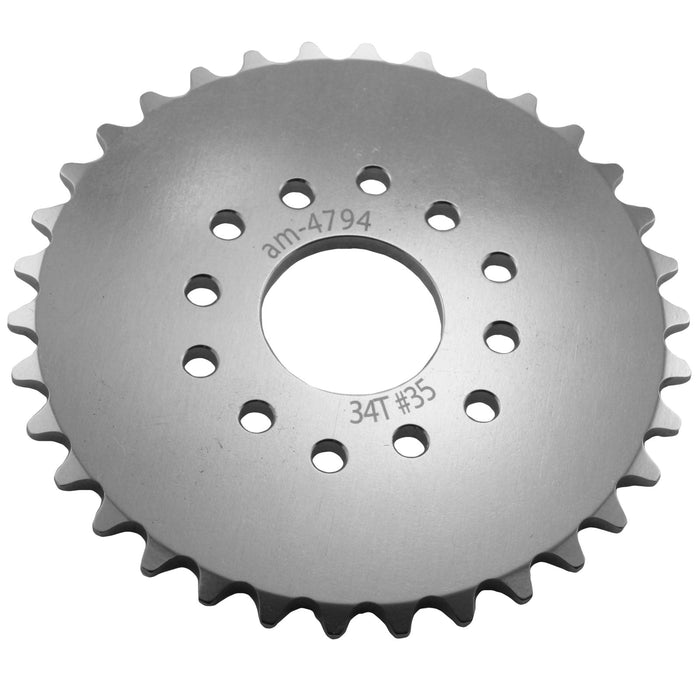

| am-4794 | 34 | 1.125 in | 4.064 | 4.276 |

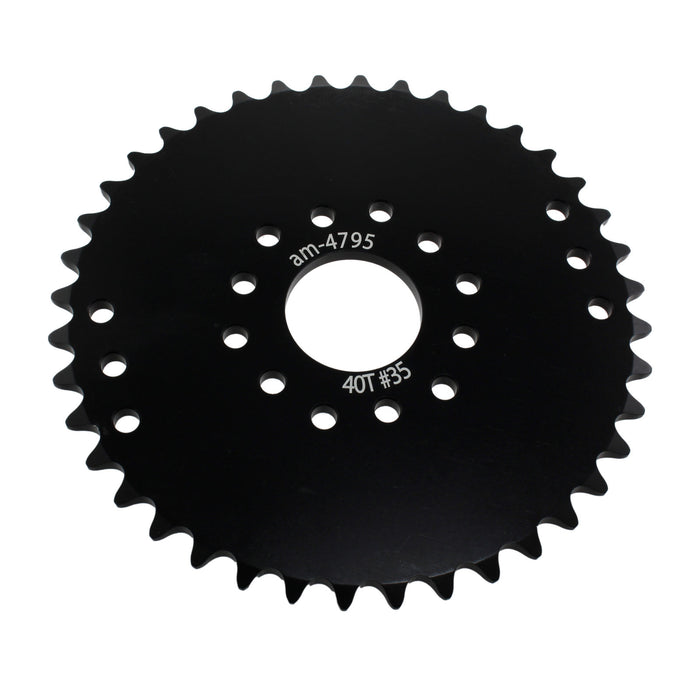

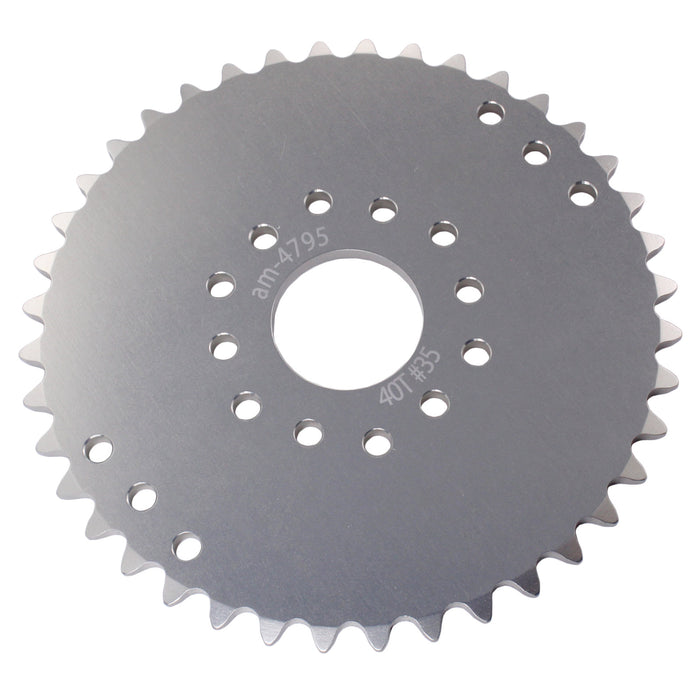

| am-4795 | 40 | 1.125 in | 4.780 | 4.993 |

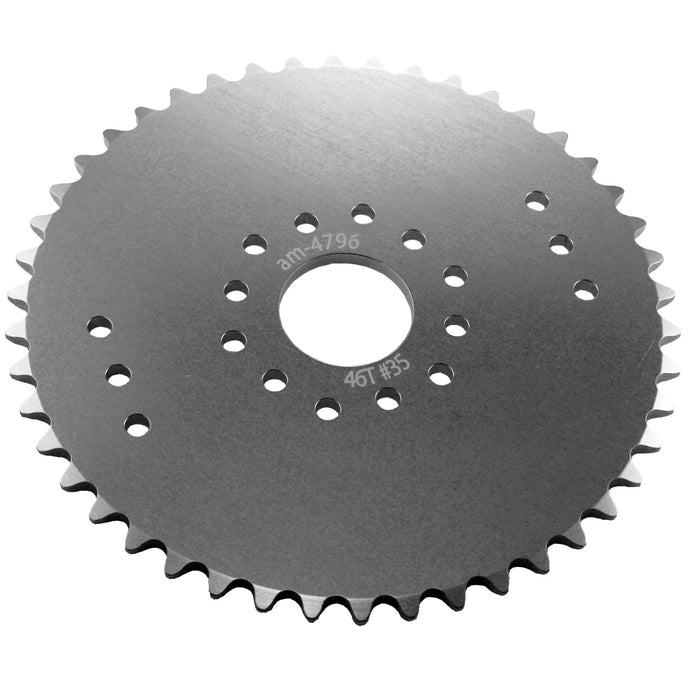

| am-4796 | 46 | 1.125 in | 5.495 | 5.710 |

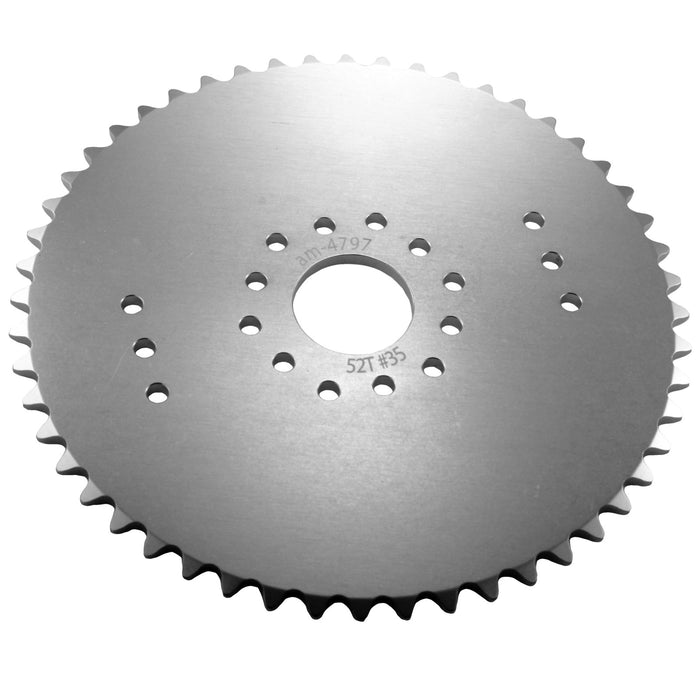

| am-4797 | 52 | 1.125 in | 6.211 | 6.427 |

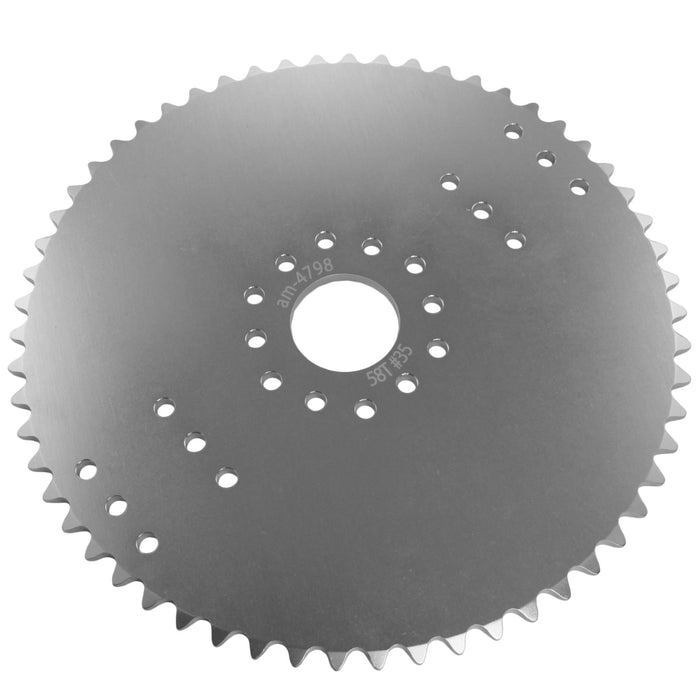

| am-4798 | 58 | 1.125 in | 6.927 | 7.144 |

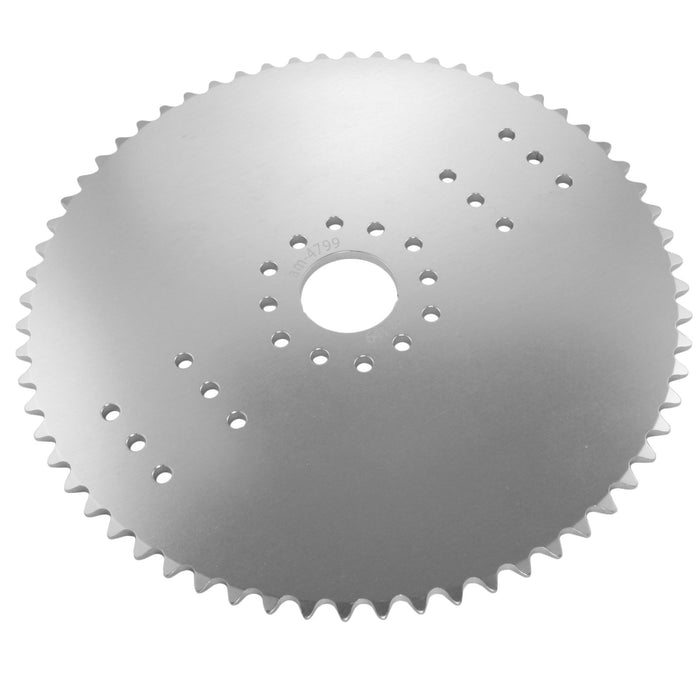

| am-4799 | 64 | 1.125 in | 7.643 | 7.861 |
Specifications
- Bolt Circle: 0.201 in. diameter holes on a 1.875 in. diameter circle
- Chain Series: 35
- Inside Diameter: 1.125 in.
- Material: 7075 Aluminum
- Thickness: 0.157 in.
