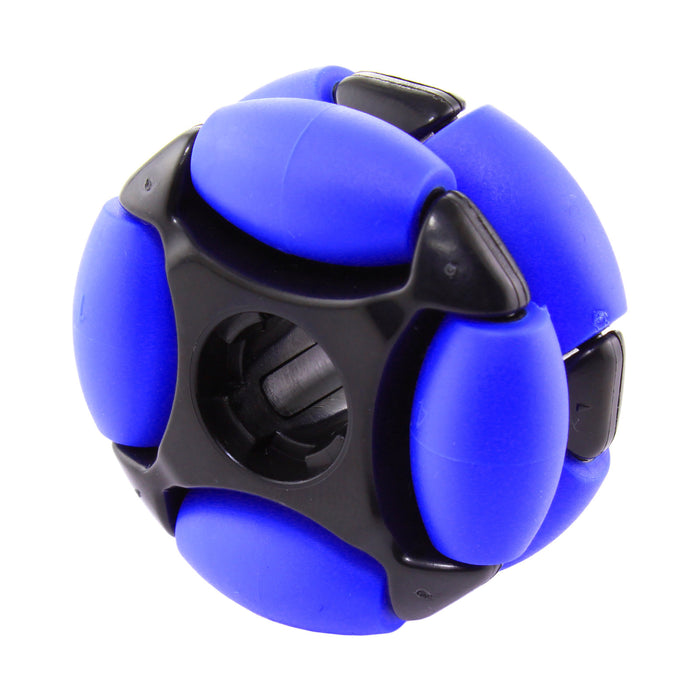

35 mm Dualie Omni Wheel
$11.25 – $13.50
Omni-directional wheels in an absolutely tiny diameter, perfect for use in odometry. These 35 mm omni wheels feature a 50A Durometer. There are two bore options: 5 mm Hex - includes 8 mm Roun...Read More
0 reviews
Write a ReviewProduct Overview
Omni-directional wheels in an absolutely tiny diameter, perfect for use in odometry.
These 35 mm omni wheels feature a 50A Durometer. There are two bore options:
- 5 mm Hex - includes 8 mm Round to 5 mm Hex Adapter (am-4971)
- 8 mm Round - no adapters included
Note: AndyMark recommends using a 5mm hex shaft to align the hex inserts before installing the inserts to the wheel.
Be sure to align the 4 prongs on the exterior of the insert with the wheel for proper installation.
Specifications
- Bore: 8 mm Round, 5 mm Hex
- Diameter: 35 mm
- Durometer: 50A
- Load Capacity: 10 lbs
- Material: ABS (body), TPE (roller)
- Weight: 0.076 lbs
Documents
CAD File(s)
Layout Print(s)
