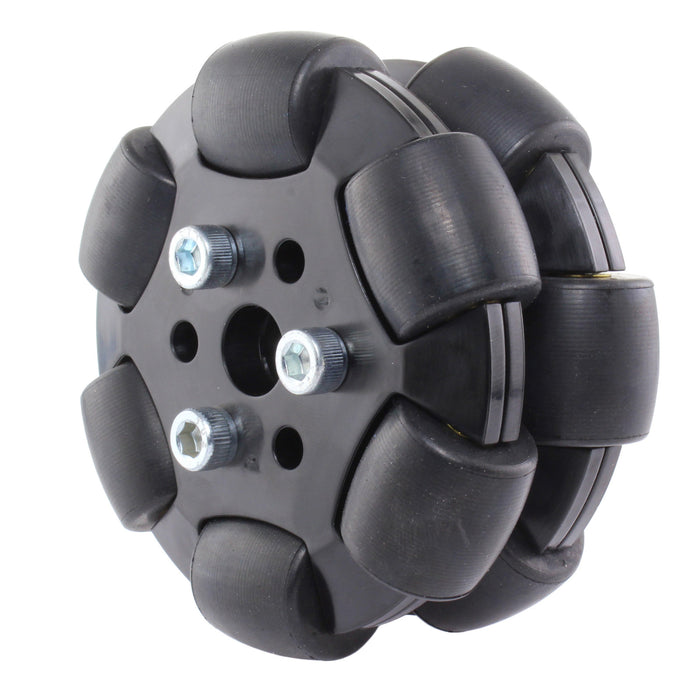

3 in. Plastic Dualie Wheel With 3/8 Hex Bore

Included Items:

• 12 - Black SBR Omni Roller (am-0049a)
• 24 - Omni-Roller Sleeve (am-0050)
• 12 - 1x1/8 in. Steel Dowel Pin (am-1019)
• 6 -10-32 x 0.75 in. Socket Head Cap Screw (am-1047)
• 4 - 3 in. Omni Wheel Plastic Plate (am-5463_half)
• 1 - 3 in. Omni Wheel Hex Hub (am-4967_hub)

• Bolt Pattern: 6 holes on a 1 in. dia. bolt circle
• Bore: 0.375 in. [9.5 mm] (3/8) Hex
• Diameter: 3 in.
• Material: Polycarbonate, Aluminum, Brass
• Roller Axle: Steel Dowel Pin
• Roller Durometer: 85A
• Rollers: 12
• Weight: 0.355 lbs.
• Width Across Middle: 1.63 in.

CAD Files

Layout Prints
