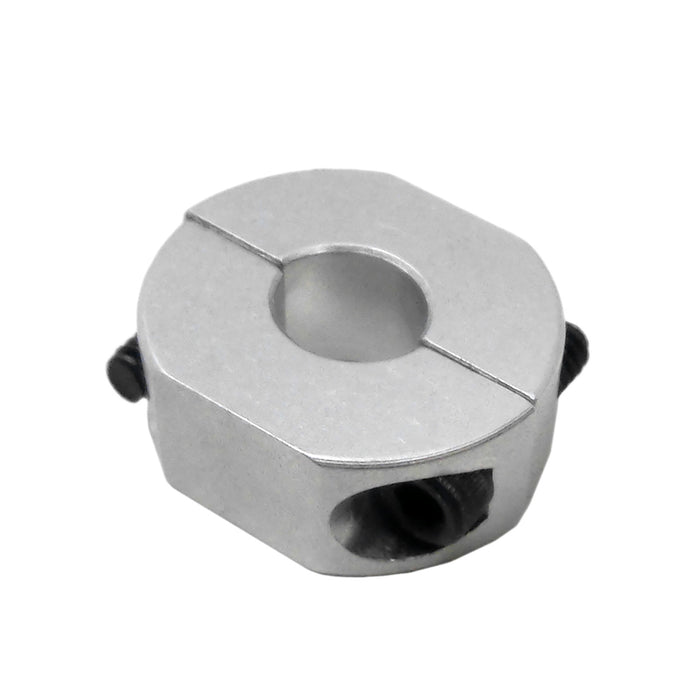

3/8 in. Round Bore 2 Piece Collar Clamp

0 reviews

Product Overview

This novel style of collar clamp is split into two pieces so that it can be attached without removing any shafts. The bore is a 3/8 in. round hole . The flats on the perimeter allow for the collar clamp to be held in position or turned for better assembly control.

This clamp has been designed and fabricated by BaneBots, and proudly sold through AndyMark.

Specifications

Bore: Round
Clamping Screws: #6-32 x 1/2 in. long (qty. 2)
Material: Aluminum
Outside Diameter: 0.94 in.
Product Lifecycle: replaced by <a href='/products/3-8-in-round-collar-clamps?Type=2%20part'>other options</a>
Thickness: 0.375 in.
Weight: 0.03 lbs
Width Across Flats: 0.875 in.
