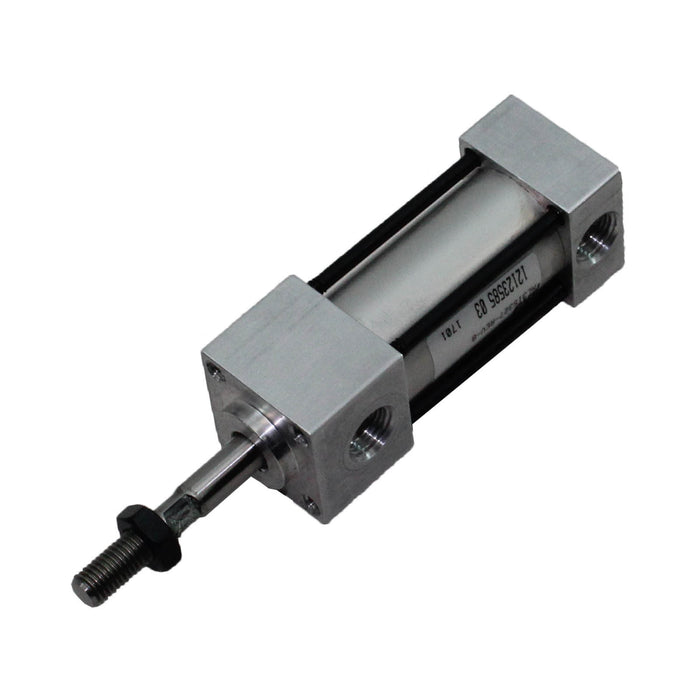

3/4 in. Bore, 1/2 in. Stroke Spring Extended Face Mount Pneumatic Cylinder

This product is currently unavailable for purchase.

0 reviews

Write a Review

View Full Details

Specifications

  • Bore: 0.75 in.
  • Manufacturer: phd, inc.
  • Port Size: 0.125 in. NPT
  • Port(s): 1/8 in. NPT
  • Pressure Rating: 150 psi
  • Product Lifecycle: replaced by <a href='/products/0-75-in-bore-0-50-in-stroke-bimba-air-cylinder'>am-4229</a>
  • Rod End Thread: 1/4-28 (NF, Fine Pitch)
  • Stroke: 0.5 in.
  • Style: Spring Extend, Double Acting
  • Weight: 0.26 Lb.

Documents

CAD File(s)
am-3494 PHD 0.750 bore 0.500 stroke spring extend cylinders.STEP
Don't see what you need?
See_all_our_guides,_drawings_and_CAD_files_here

Returns

Returns are not accepted for this product.
