2x1 Single Stage HD Elevator Bearing and Structure Kit
This is an improvement to the AndyMark 2x1 Elevator System, which is designed to be a robust, simple solution for building reliable linear motion systems. This new version has thicker and stron...Read More
Product Overview

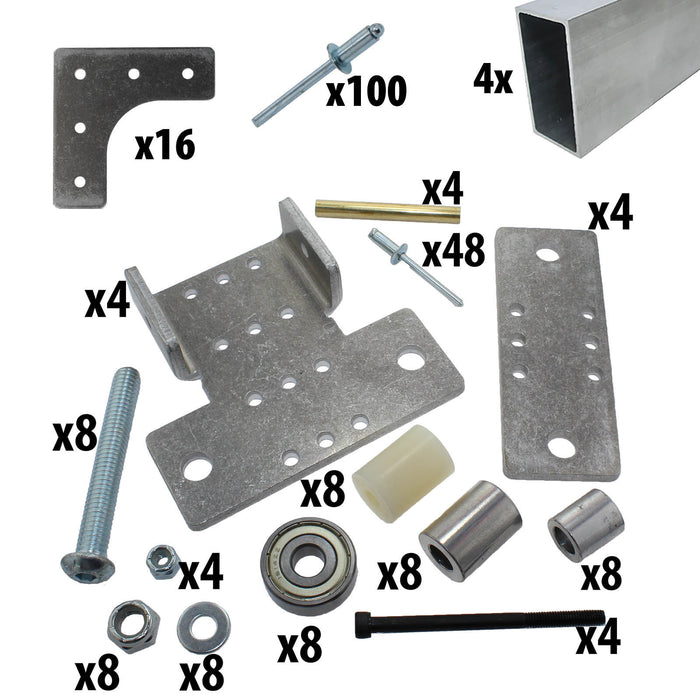

This is an improvement to the AndyMark 2x1 Elevator System, which is designed to be a robust, simple solution for building reliable linear motion systems. This new version has thicker and stronger plates to prevent bearing tearout, but also includes new hardware that allows for easy-to-build multi stage elevator structures. This easy-to-build kit solves one of the most difficult parts of building these mechanisms by providing precision cut sheet metal brackets to support the rollers and bearings for a smooth single-stage linear system. This kit takes the 2x1 Single Stage HD Elevator Bearing Kit (am-3779a) and combines it with our 2"x1"x0.063" Aluminum Box Tubing (am-3214-6) with some hardware to create a lightweight and versatile linear motion system.
Note: This product is specifically designed for 2"x1" (outside dimensions) aluminum box tubing. It is not compatible with other sizes of aluminum tubing.
Specifications
- Product Lifecycle: replaced by <a href='/products/elevator-bearings-and-structure-kits?sku=am-4878'>am-4878</a>
- Weight: 17.5 lbs
Documents
Returns
Returns are not accepted for this product.
Recommendations
3 reviews
-
manual
part came in fine just wish a manual came with had to find it online
-
lift kit review
Still messing with it
-
Single Stage Elevator Kit - Easy to Assemble!
We just got our kit at FRC 4925, so we don't have it all together yet, but it's fairly easy to put together and we're looking forward to seeing this thing in action! Do be careful to cut your aluminum tubing perfectly square and make sure your team owns a rivet gun!
