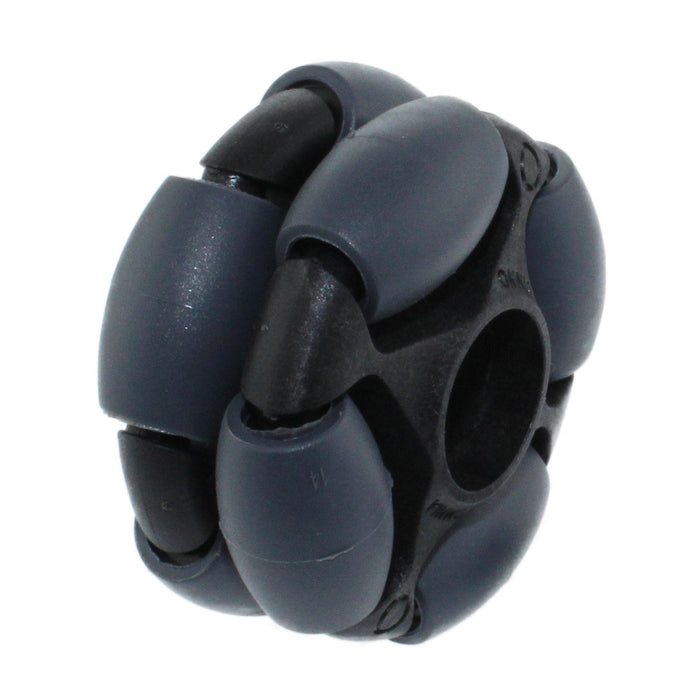

2 in. Dualie Omni 90A 14mm Hex
am-3903
$13.00
Omni-directional wheels in the smallest diameter offered by any common FIRST Robotics Competition or FIRST Tech Challenge supplier. This 50 mm / 2 inch omni wheel features hard 90A durometer roller...Read More
0 reviews
Write a ReviewProduct Overview
Omni-directional wheels in the smallest diameter offered by any common FIRST Robotics Competition or FIRST Tech Challenge supplier. This 50 mm / 2 inch omni wheel features hard 90A durometer rollers for long life and a 14 mm hex bore. This wheel can be adapted to 1/2 inch hex (am-3904) and 3/8 inch hex (am-3905) using our 14 mm shaft adapters. Stack several of these on a shaft to craft an unstoppable intake system for your robot that can be used to center game pieces.
Specifications:
Specifications:
- Material: Glass Filled Nylon Body, Acetal Inserts, Thermoplastic Elastomer Rollers
- Diameter: 50 mm, 1.96 in.
- Bore: 14 mm Hex
- Weight: 0.076 Pounds
- Durometer: 90A
- Load Capacity: 35 Pounds
Documents
Layout Print(s)
CAD File(s)
