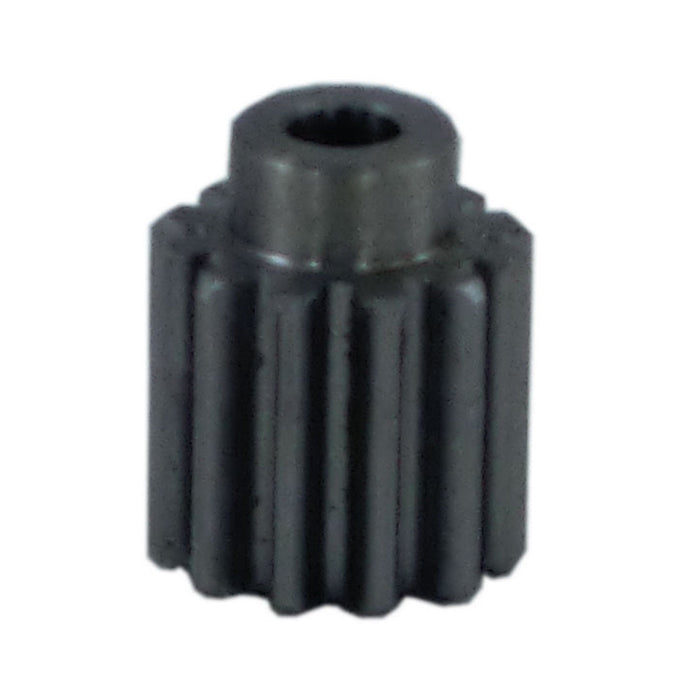

12 Tooth 32 DP 0.125 in. Round Bore Steel Gear
This gear smoothly presses onto the knurled shaft of a 9015 motor attaching to the shaft with only the friction press fit. No set screw, machine key, or collar clamp is needed. It is a slip fit (an...Read More
Product Overview
This gear smoothly presses onto the knurled shaft of a 9015 motor attaching to the shaft with only the friction press fit. No set screw, machine key, or collar clamp is needed. It is a slip fit (and thus will not transmit torque) on smooth shafts like the one on the Banebots 550 motor.
Specifications
- Bore: 0.125 in. Round
- Diametral Pitch: 32
- Face Width: 0.375 in.
- Material: 1117 Steel
- Overall Width: 0.505 in.
- Pitch Diameter: 0.375 in.
- Pressure Angle: 20 Degrees
- Product Lifecycle: discontinued
- Teeth: 12
- Weight: 0.1 lbs
