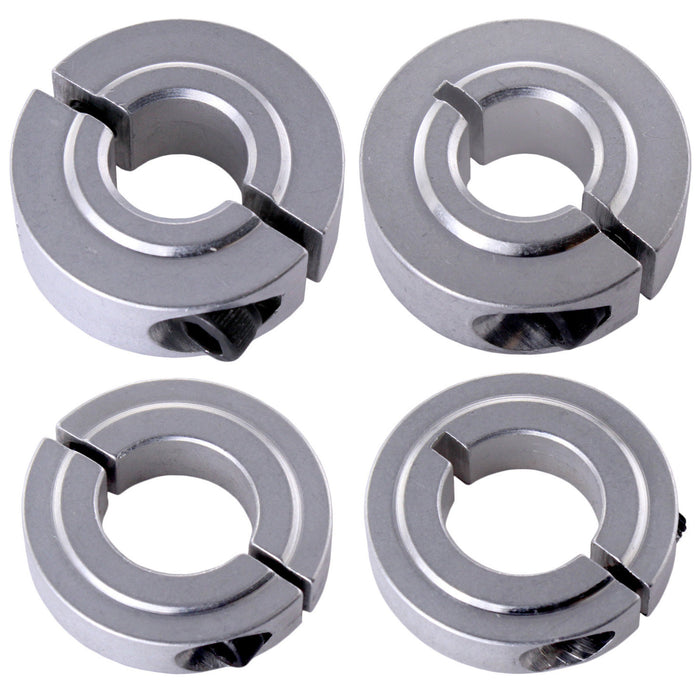

1/2 in. Round Collar Clamps - am-500RoundCollarClamp_1 - Image-1 - migrated

1/2 in. Round Collar Clamps

by AndyMark

$5.20 USD - $6.30 USD

$5.20 USD

$5.20 USD - $6.30 USD

$5.20 USD - $6.30 USD

$5.20 USD

These Collar Clamps fit on 0.5 in. shaft.

Quantity

SKU

Description
Specifications
Documentation

Collar Clamps are very useful in keeping a shaft from sliding in the direction of the axis while in rotation. 1-part Collar Clamps have a C shaped profile and can be tightened using one screw. 2-part Collar Clamps can be installed in trickier places to reach due to their multiple pieces.
- Bore: 0.500 in. [12.7 mm] (1/2) Round
- Material: 6061 T6 Aluminum
- Thickness: 0.25 in., 0.5 in.
CAD Files

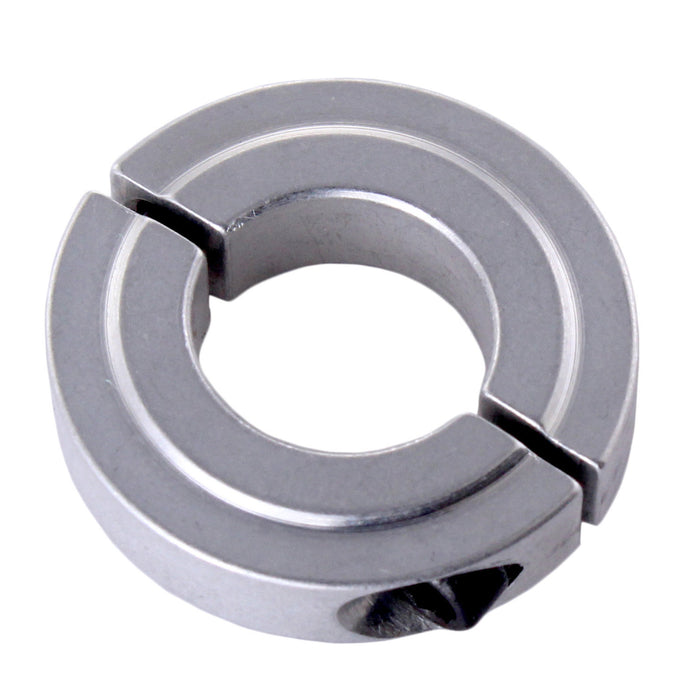

am-1644 500Round Thin Collar Clamp (2 Part) Assembly.STEP

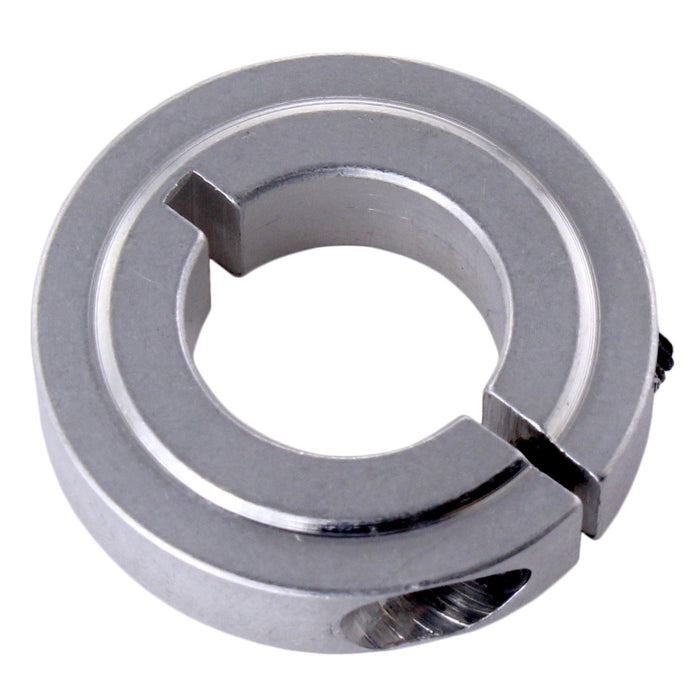

am-1643 500Round Thin Collar Clamp (1 Part) Assembly.STEP

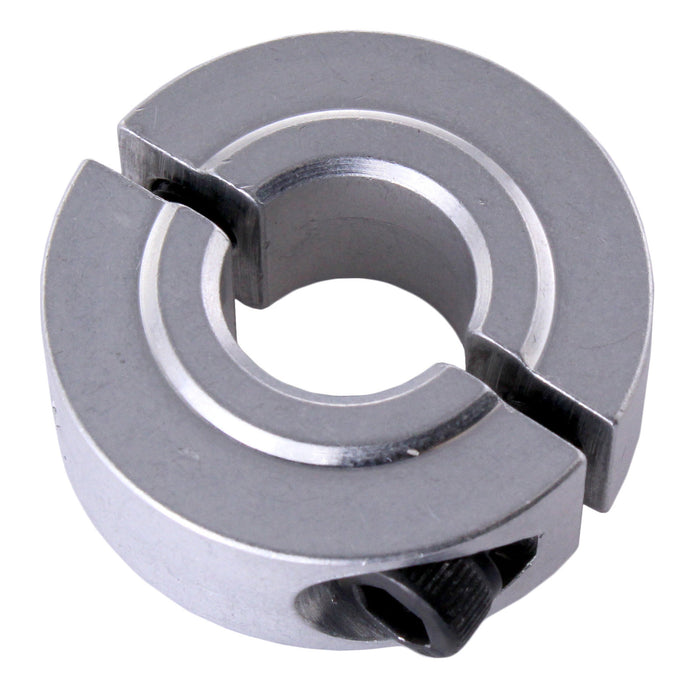

am-1642 500Round Collar Clamp (2 Part).STEP

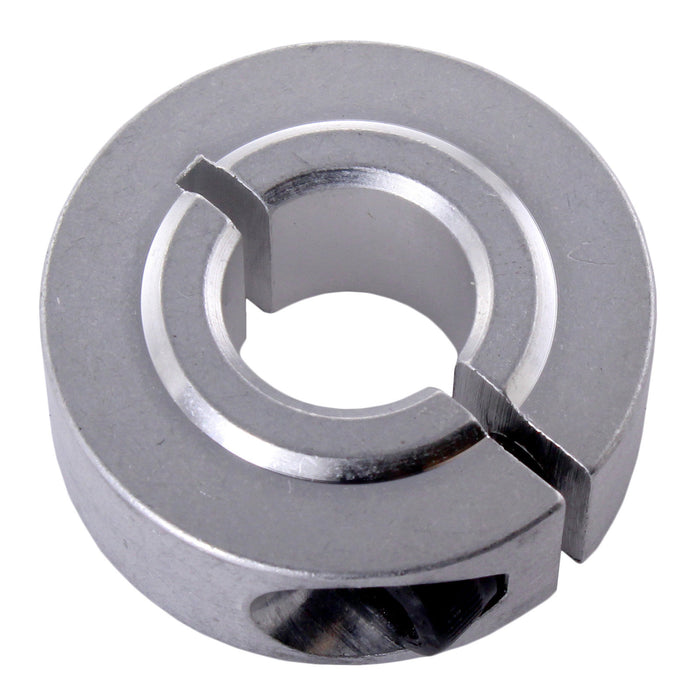

am-1641 500Round Collar Clamp (1 Part) Assembly.STEP
Layout Prints
am-1644 500Round Thin Collar Clamp (2 Part) Assembly.pdf
am-1643 500Round Thin Collar Clamp (1 Part) Assembly.pdf
am-1642 500Round Collar Clamp (2 Part).pdf
am-1641 500Round Collar Clamp (1 Part) Assembly.pdf
