CIMple Box & Spinbox 1/2 in. Key Output Magnet Shaft with
This 1/2 in. keyed output shaft is used in the CIMple Box and SpinBox gearboxes. This shaft features a 1/4-20 tapped hole 1/2 in. deep to be used when capturing components on the shaft. The smaller...Read More
0 reviews
Write a ReviewProduct Overview

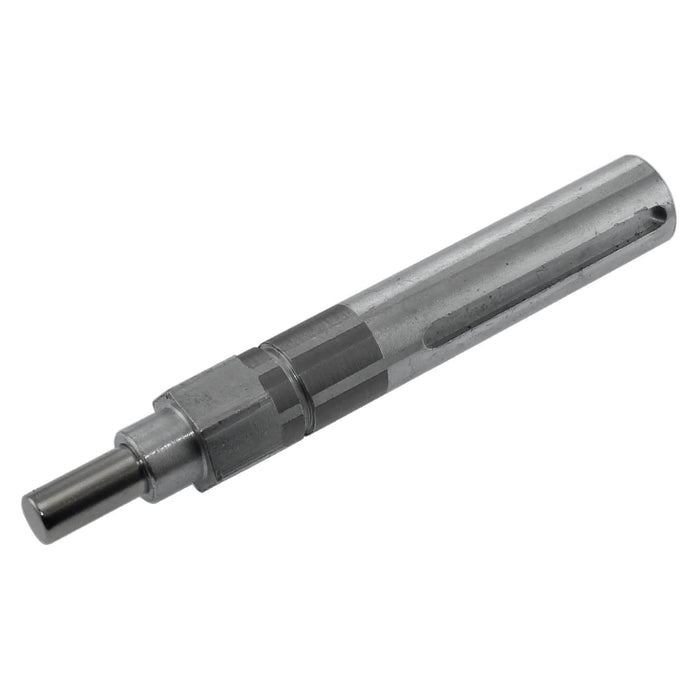

This 1/2 in. keyed output shaft is used in the CIMple Box and SpinBox gearboxes. This shaft features a 1/4-20 tapped hole 1/2 in. deep to be used when capturing components on the shaft. The smaller end of the shaft features a magnet that is usable with magnet encoders.
Specifications
- Diameter: 0.497 - 0.499 in.
- Finish: Zinc Plated
- Keyway Length: 1.43 in.
- Keyway Width: 0.128 - 0.131 in.
- Material: 4140 Steel
- Overall Length: 3.615
- Product Lifecycle: discontinued, this is being replaced by <a href='/products/short-1-2-in-keyed-output-shaft-with-magnet-for-toughbox-series'>am-0153a</a> for future versions of CIMple Box
- Weight: 0.154 lbs
- Width: 0.49 - 0.5 in.
