1/2 in Key Hub

am-0077a

This product is currently unavailable for purchase.

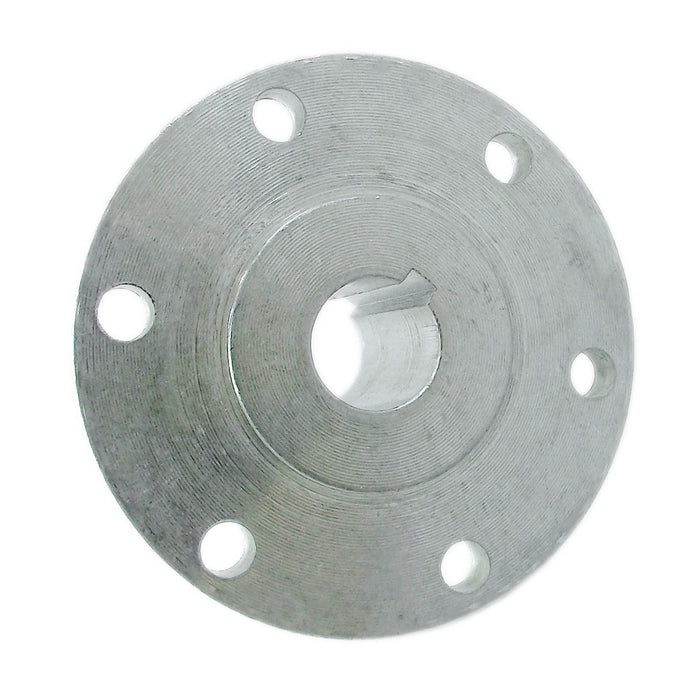

500 Key Hub. This hub fits all AndyMark wheels. The machine key is not included with this hub. This part is designed and fabricated in Indiana, USA.

View Full Details

Product Overview

500 Key Hub. This hub fits all AndyMark wheels. The machine key is not included with this hub.

This part is designed and fabricated in Indiana, USA.

Specifications

  • Bolt Pattern: 0.204" diameter holes, evenly spaced on a 1.875" diameter bolt circle
  • Bore: 0.501-0.505" diameter bore, with 1/8" keyway1/8x1/8x0400 Machine Key, steel (am-1018)1/8x1/8x0700 Machine Key, steel (am-1043)
  • Material: 6061 Aluminum
  • Outside Diameter: 2.25"
  • Weight: 0.1 Pound
  • Product Lifecycle: replaced by <a href="https://www.andymark.com/products/500ex-key-hub">am-0976</a>

Recommendations

10mm Key Hub

am-0985a

$11.00

$6.00

500EX Key Hub

am-0976

$9.00

$3.00

625 Key Hub

am-0214a

$11.00

$6.00

10mm DD Bore Hub

am-2279

$17.00

$8.00

500 Bearing Hub

am-0160

$19.50

$9.00

29 reviews

  1. star star star star star 5.0 out of 5 stars

    Great Value

    This is a pretty awesome keyed wheel hub. You can tell it's been turned down on a lathe, not cast like the cheaper Chinese versions. Tolerances seem to be pretty tight for what it is. The one thing I don't like about this hub is that the bottom is not entirely flat. It has a small raised area on it so you can't mount something flush on the bottom. All of this is documented on the drawing and CAD model. Speaking of which, the CAD model and drawing is the reason I went with this hub, good documentation is hard to find on those Chinese websites. Overall, good value, good documentation. Nice work AndyMark!

    DS

    Verified Purchaser

  2. star star star star star 5.0 out of 5 stars

    The hub worked perfectly. The shaft fit was su...

    The hub worked perfectly. The shaft fit was super close and the key fit perfectly in the slot. Very pleased.

    DP

    Verified Purchaser

  3. star star star star star 5.0 out of 5 stars

    "Review"

    "5 stars"

    DX from Dunrobin

  4. star star star star star 5.0 out of 5 stars

    Review

    5 Stars

    XG from Shenzhen

  5. star star star star star 5.0 out of 5 stars

    "Review"

    "5 stars"

    MS from Hibbing

  6. star star star star star 5.0 out of 5 stars

    1/2" Key Hub

    Product description, actual part, and delivery were all very good. Would purchase again from Andy-Mark.

    PM from Milford

  7. star star star star star 5.0 out of 5 stars

    Review

    5 Stars

    UI from San Antonio

  8. star star star star star 5.0 out of 5 stars

    Prompt and Accurate Service

    Ordered for our FRC competition robot. Exactly as described. Fast order processing and shipment. Superb customer service on this order. AndyMark has really improved in all aspects!

    RH from Oak Harbor

  9. star star star star empty_star 4.0 out of 5 stars

    hub is nicely machined and fits 8" wheel perfectly

    1/8" key fits perfectly but needed to drill and tap a 8/32 machine screw to lock hub on shaft to stop axial movement. Hub should come with this done already.

    PA from Calgary

  10. star star star star empty_star 4.0 out of 5 stars

    "Review"

    "4 stars"

    GA from Slidell

  11. star star star star star 5.0 out of 5 stars

    Good Hub

    Thank you for AM product line! Please add longer 10-32 SHCS (3,0, 3.25, 3.5, 3.75). 3-3/4 long used this year in AM14U3 KOP not available as separate purchase - can you make available in packages of 6 or 12 (one, two wheels)

    MC from Royal Oak

  12. star star star star star 5.0 out of 5 stars

    Review

    5 Stars

    RF from Taylor

  13. star star star star star 5.0 out of 5 stars

    Good

    Exactly what we ordered and worked as advertised.

    CB from Gulfport

  14. star star star star star 5.0 out of 5 stars

    Review

    5 Stars

    CD from Richmond

  15. star star star star empty_star 4.0 out of 5 stars

    8"Mecanum wheels

    Everything was A1 about the wheels except for 4 BENT roller wheel bolts.. these are hard to find in our area and NO EXTRA ( which is my suggestion ) bolts ,nuts, etc. 1 of each item, is only 4 pieces of hardware per wheel and considering the # of parts per wheel its less than 2% and would have saved us a half of day searching around for such a specialty bolt. AWESOME WHEEL NONE-THE-LESS. And LIZ was a great tech help BTW.

    BR from Zellwood

  16. star star star star empty_star 4.0 out of 5 stars

    "8"Mecanum wheels"

    "Everything was A1 about the wheels except for 4 BENT roller wheel bolts.. these are hard to find in our area and NO EXTRA ( which is my suggestion ) bolts ,nuts, etc. 1 of each item, is only 4 pieces of hardware per wheel and considering the # of parts per wheel its less than 2% and would have saved us a half of day searching around for such a specialty bolt. AWESOME WHEEL NONE-THE-LESS. And LIZ was a great tech help BTW."

    BR from Zellwood

  17. star star star star star 5.0 out of 5 stars

    Review

    bon

    MM from St-Mathieu de Laprairie

  18. star star star star star 5.0 out of 5 stars

    Review

    5 Stars

    gs from el paso

  19. star star star star star 5.0 out of 5 stars

    just what we needed

    works with the standard drives out the FRC gearboxes from KOP

    CJ from Oak Grove

  20. star star star star star 5.0 out of 5 stars

    Good product

    Perfect fit, easy installation, fast shipment.

    LG from Wichita Falls

  21. star star star star star 5.0 out of 5 stars

    Team 1413

    Keyed and worked as desired. Good purchase

    RF from Clarksville

  22. star star star star star 5.0 out of 5 stars

    Review

    5 Stars

    CD from Tabernacle

  23. star star star star empty_star 4.0 out of 5 stars

    Review

    4 Stars

    TK from Dublin

  24. star star star star star 5.0 out of 5 stars

    key hub

    Very satisfied!

    JQ from Bluffton

  25. star star star star star 5.0 out of 5 stars

    Review

    5 Stars

    AD from Big Rapids

  26. star star star star empty_star 4.0 out of 5 stars

    "Review"

    "OK"

    TK from Dublin

  27. star star star star star 5.0 out of 5 stars

    500 key hub

    great hub fits both andy mark wheels and Vex 6" mechanums

    AK from Westhampton Beach

  28. star star star star empty_star 4.0 out of 5 stars

    AnyMark Hubs

    I find the hubs easy to use. The location of the holes is also easy to replicate on a milling machine, in case I need to mount the hubs to a plate, instead of an AndyMark Wheel.

    MF from Philadelphia

  29. star star star star star 5.0 out of 5 stars

    Review

    5 Stars

    AW from MANCHESTER
