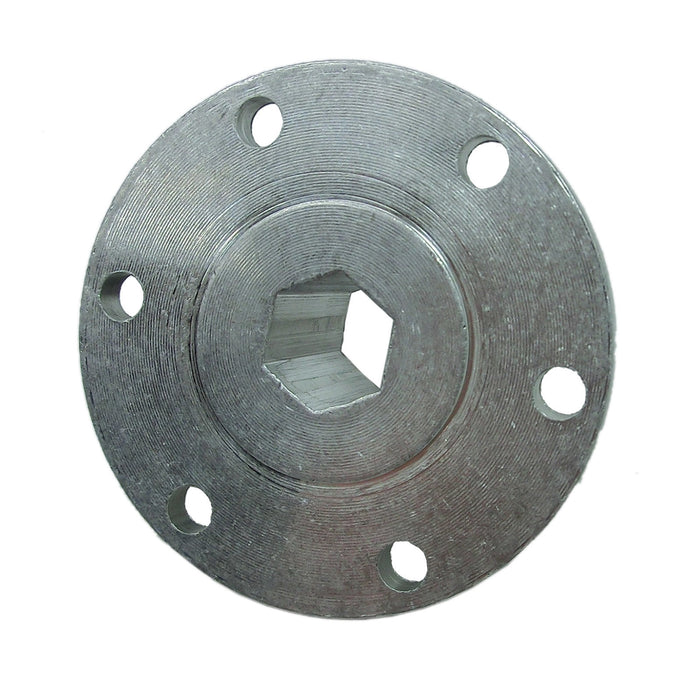

1/2 in. Hex Hub
am-0096a
This hub fits all AndyMark wheels. If this hub is out of stock our 500EX Hex Hub (am-2568) is functionally identical. The bolt pattern is designed to have 6 holes that are evenly spaced on a 1.87...Read More
Product Overview
This hub fits all AndyMark wheels. If this hub is out of stock our 500EX Hex Hub (am-2568) is functionally identical.
The bolt pattern is designed to have 6 holes that are evenly spaced on a 1.875 in. diameter bolt circle. The hex broach is consistently cut to be aligned with the holes.
The bolt pattern is designed to have 6 holes that are evenly spaced on a 1.875 in. diameter bolt circle. The hex broach is consistently cut to be aligned with the holes.
The mounting holes and the hex bore are now aligned and consistent.
This part is designed and fabricated in Indiana, USA.
Specifications
- Bolt Pattern: 0.204" diameter holes, evenly spaced on a 1.875" diameter bolt circle
- Bore: 0.501-505" hex bore (broached)
- Boss Diameter: 0.956" - 0.96"
- Material: 6061 Aluminum
- Outside Diameter: 2.25"
- Weight: 0.104 lbs
- Product Lifecycle: replaced by <a href="https://www.andymark.com/products/andymark-hub?Bore=1%2F2%20in.%20Hex%20(am-4124)">am-4124</a>
