3 in. Omni Wheel Outer Plate

This product has been discontinued.

3 in. Omni Wheel Outer Plate - am-4967_outer - migrated

3 in. Omni Wheel Outer Plate

by AndyMark

$4.00 USD - $4.00 USD

$4.00 USD

$4.00 USD

$4.00 USD - $4.00 USD

$4.00 USD

The information provided on this page is retained for posterity.

This product is no longer for sale at AndyMark and has been discontinued

Description
Specifications
Documentation

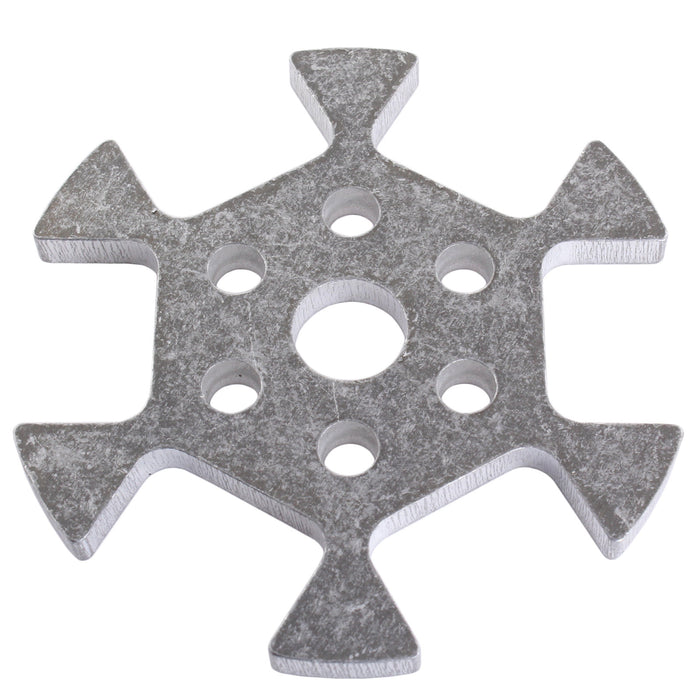

This plate is used on the 3 in. Omni Wheel to hold the rollers and their mounting hardware.
- Bolt Pattern: 6 holes on 1 in. dia. bolt circle
- Bore: 0.430 in. [10.9 mm] Round
- Diameter: 2.6 in.
- Material: Aluminum
- Thickness: 0.19 in.
- Weight: 0.044 lbs.
CAD Files
am-4967_outer 3IN Aluminum Omni Wheel Outer Plate.STEP
Layout Prints
am-4967_outer 3IN Aluminum Omni Wheel Outer Plate.pdf
