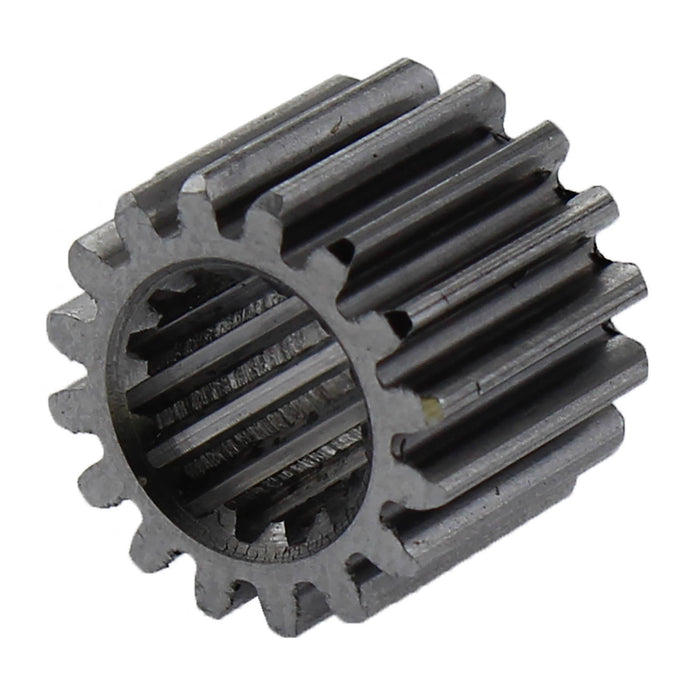

16 Tooth 0.7 Module Falcon Spline Bore Steel Pinion Gear

Name: 16 Tooth 0.7 Module Falcon Spline Bore Steel Pinion Gear
Brand: AndyMark
SKU: am-4144
Price: 12.0 USD
Availability: OutOfStock
Rating: 5.0 (1 reviews)

by AndyMark

Sold out

$12.00 - $12.00

$12.00

$12.00 - $12.00

$12.00

Description
Specifications
Documentation

This 16T 0.7 Module steel gear is used in our Falcon Sport gearbox. This gear is available separately for teams who want to convert their existing CIM Sport gearboxes into Falcon Sports without having to repurchase entire gearboxes. Use this in conjunction with our Falcon Sport Input Plate as well as a Falcon 500 Short Shaft for a budget-minded high-power upgrade to your CIM Sport!
- Bore: Falcon Spline
- Face Width: 0.4 in.
- Material: 4140 Steel
- Module: 0.7 External
- Pitch Diameter: 11.2 mm
- Pressure Angle: 20°
- Teeth: 16
- Weight: 0.009 lbs.
CAD Files
am-4144 16T Mod 0.7 Gear Spline Bore Falcon 500 Pinion.STEP
Layout Prints
am-4144 16T Mod 0.7 Gear Spline Bore Falcon 500 Pinion REV3.PDF
am-4144 16T Mod 0.7 Gear Spline Bore Falcon 500 Pinion.PDF
