Toughbox Series 1/2 in. Hex Steel AM14U Family Output Shaft with Magnet - am-2566a - migrated

Toughbox Series 1/2 in. Hex Steel AM14U Family Output Shaft with Magnet

by AndyMark

$16.00 USD

$16.00 USD - $16.00 USD

$16.00 USD

$7.00 USD

$7.00 USD - $7.00 USD

$7.00 USD

The information provided on this page is retained for posterity.

This product is no longer for sale at AndyMark and has been replaced by am-2566b_mag

Description
Specifications
Documentation

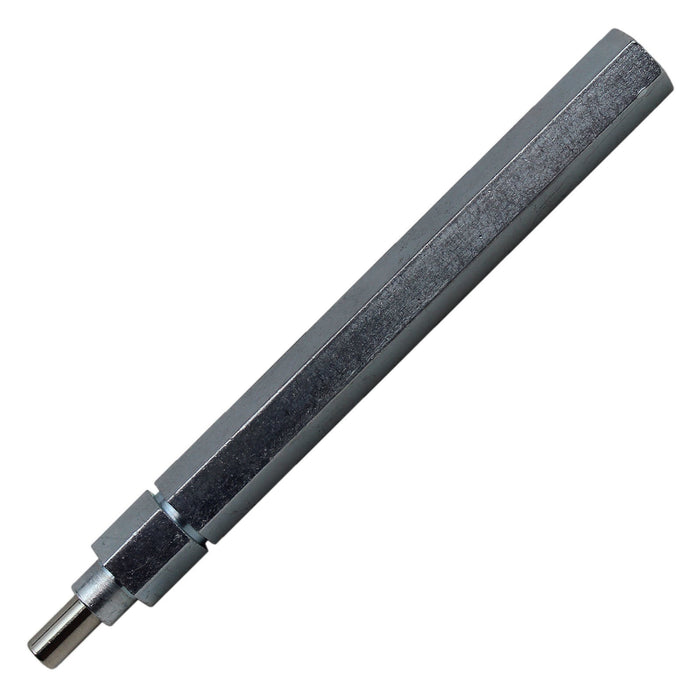

This is the 1/2 in. hex steel output shaft for the ToughboxÂ® series gearboxes when used with the AM14U3. This shaft includes a pre-installed magnet designed specifically with the E4T OEM Miniature Optical Encoder (am-3132) and SRX Magnetic Encoder (am-3445) in mind. This shaft has replaced am-2566.

Usage:

If using this shaft with the SRX Magnetic Encoder (am-3445), the SRX Magnetic Encoder Mounting Hardware Kit (am-3565) will be needed. The hardware allows for proper spacing of the encoder from the shaft magnet on ToughboxÂ® Series Gearboxes and the EVO Shifter.
- Diameter of Magnet: 0.249 in.
- Diameter of Small End: 0.37 in.
- Hex Width: 0.5 in.
- Material: 1018 Steel
- Overall Length: 4.24 in.
- Weight: 0.34 lbs.
CAD Files
am-2566a Short 500 Hex Steel Output Shaft with Magnet for Toughbox Series.STEP
Layout Prints
am-2566a Short 500 Hex Steel Output Shaft with Magnet for Toughbox Series.PDF
am-2566a TB Output Shaft Hex AM14U.PDF

Not Returnable

This product is not eligible for returns. All sales are final.
