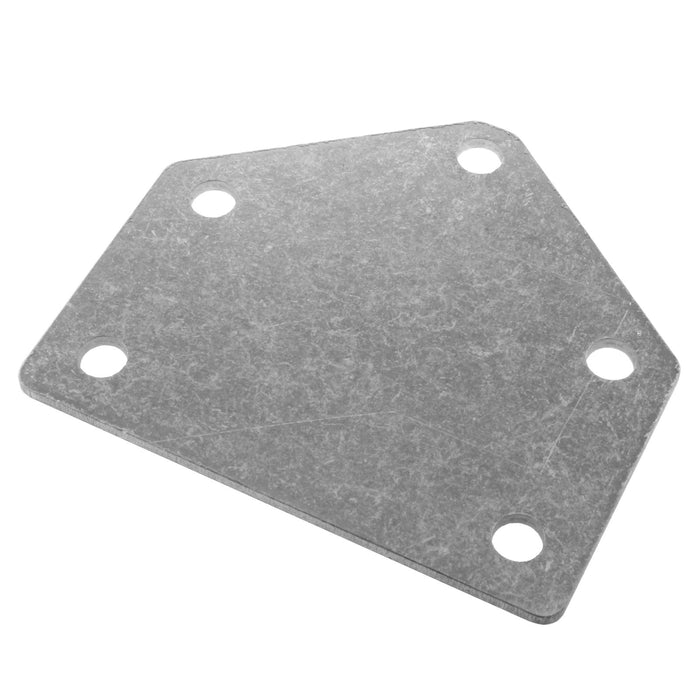

Vision Ring Joint Plate
am-4672_vrjp
$2.00
This Plate is used in the UPPER HUB Vision Ring Replica for RAPID REACT℠, but could be used as structure in many other applications. The holes are 0.266 in. in diameter, sized for a 1/4 in. bolts. ...Read More
0 reviews
Write a ReviewProduct Overview
This Plate is used in the UPPER HUB Vision Ring Replica for RAPID REACT℠, but could be used as structure in many other applications. The holes are 0.266 in. in diameter, sized for a 1/4 in. bolts. The 4 main holes are on the corners of a 1.5 x 1.25 in. rectangle.
Specifications
- Finish: Tumbled
- Length: 2.88 in.
- Material: Aluminum
- Thickness: 0.09 in.
- Width: 3.25 in.
Documents
CAD File(s)
Layout Print(s)
