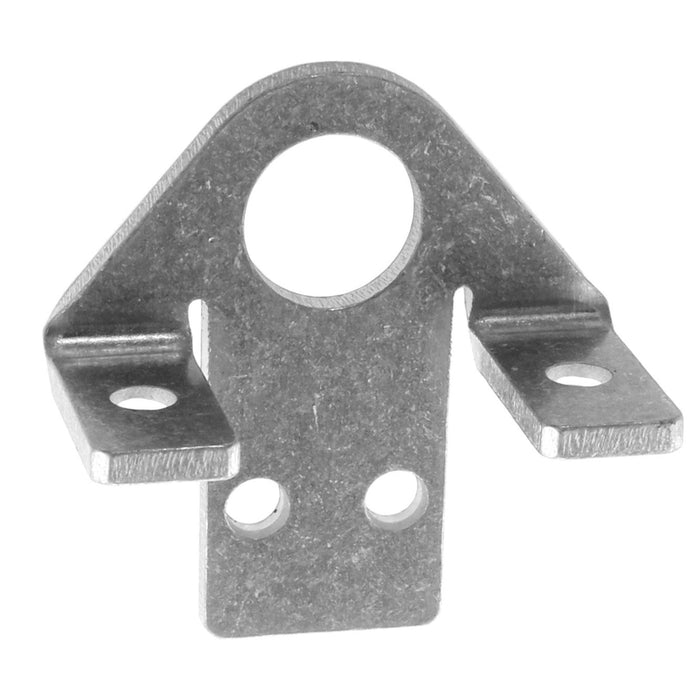

Transverse Cylinder Mount Bracket
This bracket allows attachment of an air cylinder to most rectangular extrusions such as Peanut or 2x1 box tube
Product Overview
This bracket allows attachment of an air cylinder to most rectangular extrusions such as Peanut or 2x1 box tube
Specifications
- Material: 5052 Aluminum
- Overall Width: 2.0 in.
- Product Lifecycle: replaced by <a href='/products/transverse-cylinder-mount'>am-3055a</a>
- Thickness: 0.125 in.
Documents
Layout Print(s)
CAD File(s)
Don't see what you need?
Returns
Returns are not accepted for this product.
Recommendations
1 review
-
Material is too light
This is a good basic design, but the bracket at 0.090 thick is flimsy. It needs to be at least 0.125 aluminum.
