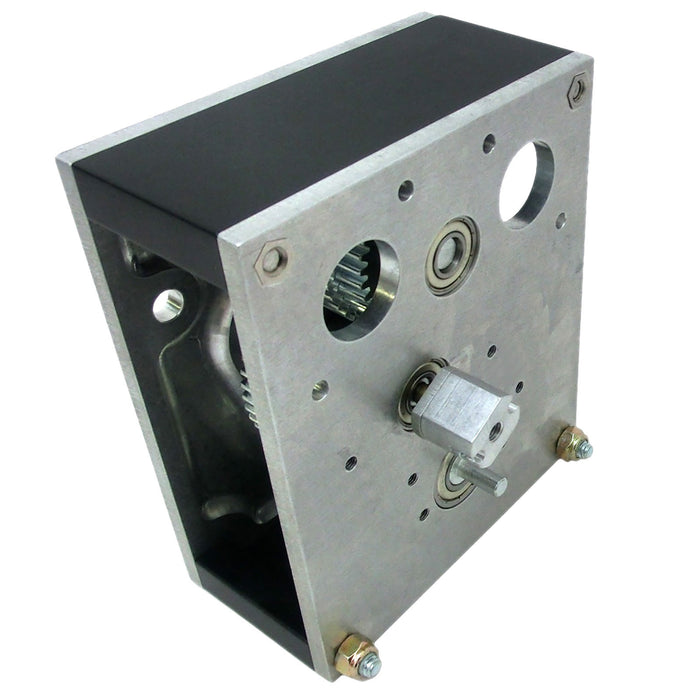

Sonic Shifter - Key - 2.56:1 [Low 14.8:1 / High 5.8:1]

This product is currently unavailable for purchase.

This shift-on-the-fly gearbox, uses a dog gear shifting method. Motor input accepts two CIM motors, or two AM Planetary Gearboxes or a combination of either (both not included). The output shaft is...Read More

0 reviews

Write a Review

View Full Details

Product Overview

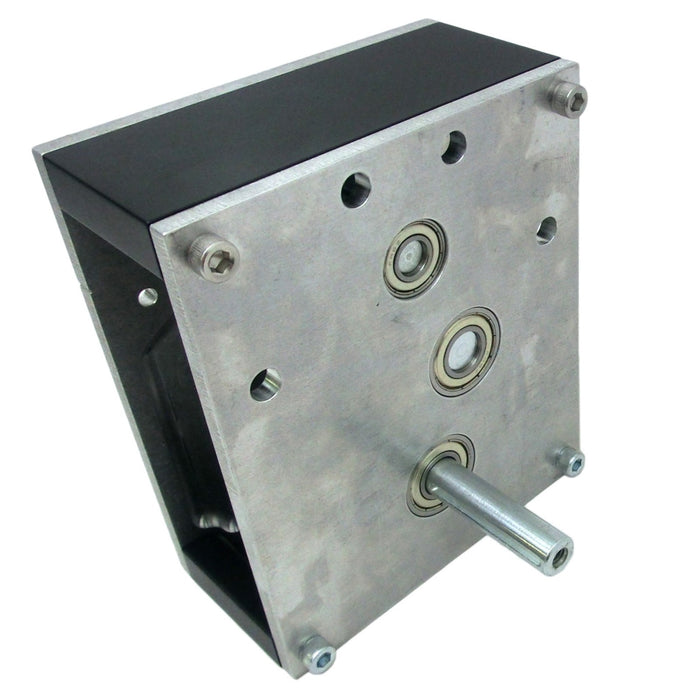

This shift-on-the-fly gearbox, uses a dog gear shifting method. Motor input accepts two CIM motors, or two AM Planetary Gearboxes or a combination of either (both not included). The output shaft is a 1/2" 4140 steel shaft with a 1/8" keyway.
Key Features:
  • The output shaft is centered on the gearbox
  • CIM motor inputs centered on the gearbox
  • The Sonic Shifter is lighter than the AM Shifter and Super Shifter designs
  • Wider variety of gear ratio options available
Shift Style:
Two shifting methods are available for the Sonic Shifter. The pneumatic method is much stronger and faster than the servo method.
  • Pneumatic:
    • A pneumatic cylinder, Bimba model 04-0.5-DP, 3/4" bore x 1/2" stroke, (not included) shifts between high and low gear. This cylinder mounts with a 5/8-18 nut (not included). This is a strong, fast method of shifting, lasting under 0.5 seconds and pushing with 26 pounds of force (if using 60 psi). This pneumatic shift can be done while a robot is accelerating.
  • Servo:
    • A Servo Shifting hardware pack is available (am-xxxx), but not included with this product.
    • A Hi-Tech Servo, model HS-422HD is included in am-xxxx, using an actuation fork to shift between the 2 gear settings. This is a slow, weaker method of shifting (compared to pneumatic), taking 1.5-2 seconds and pushing with up to 8.5 pounds of force. A robot driver may need to back off of the throttle to let a servo shift gears while moving.
Total Weight: approx. 3.5 lbs., with pneumatic cylinder installed

Gear Ratios Options:
Part # Ratio High:Low Low Gear Ratio High Gear Ratio Small Output Gear Medium Cluster Gear Final Stage Large Gear Final Stage Small Gear 4" Wheel Output Speed (fps) 6" Wheel Output Speed (fps)
am-2509a 2.56: 1 24.0 : 1 9.4: 1 35 tooth 28 tooth 45 tooth 20 tooth 3.24/8.29 4.86/12.43









am-2509c 4.1 : 1 24.0 : 1 6.0 : 1 28 tooth 35 tooth 45 tooth 20 tooth 3.24/12.95 4.86/19.43









am-2509e 2.56 : 1 14.8 : 1 5.8 : 1 35 tooth 28 tooth 45 tooth 20 tooth 5.24/13.42 7.86/20.13









am-2509g 4.1 : 1 14.8 : 1 3.7 : 1 28 tooth 35 tooth 45 tooth 20 tooth 5.24/20.97 7.86/31.46










To purchase individual parts to change ratios on your own, see Optional Parts Sold Separately below.
Motor Input:
Optional Sonic Shifter Output Shafts:
Weight Reduction:
  • An aluminum Hex SS Wheel Shaft (made from 7075 aluminum) can replace the standard steel Wheel Shaft
Common Parts:
The Sonic Shifter uses many of the same fabricated parts as the AM Shifters (am-0001, am-0114 or am-0957) transmissions: CIM gears (12 tooth), Large Cluster Gear, Medium Cluster Gear, Small Output Gear, Large Output Gear, Dog Gear, Cylinder plate, Shifter Shaft, and Shift Block

Thanks to Evan from 2470 and Sean from 2489 for our gearbox name, the "Sonic Shifter."

Specifications

  • Product Lifecycle: replaced by <a href='/products/evo-shifter?sku=EVO-2-163-060-SK2'>EVO-2-163-060-SK2</a>
  • Weight: 4.2 lbs

Documents
