Sonic Shifter - Hex - 4.1:1 [Low 24.0:1 / High 6.0:1]

This product is currently unavailable for purchase.

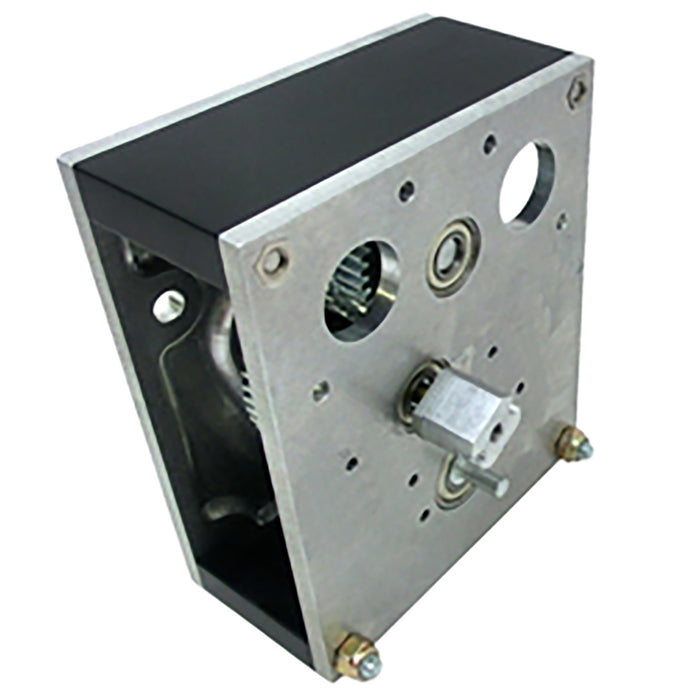

Our latest and greatest shifting two-speed transmission. Eight different gearing ratios and two shaft options are available for this top of the line gearbox. This shift-on-the-fly gearbox, uses a ...Read More

0 reviews

Write a Review

View Full Details

Product Overview

Our latest and greatest shifting two-speed transmission. Eight different gearing ratios and two shaft options are available for this top of the line gearbox.

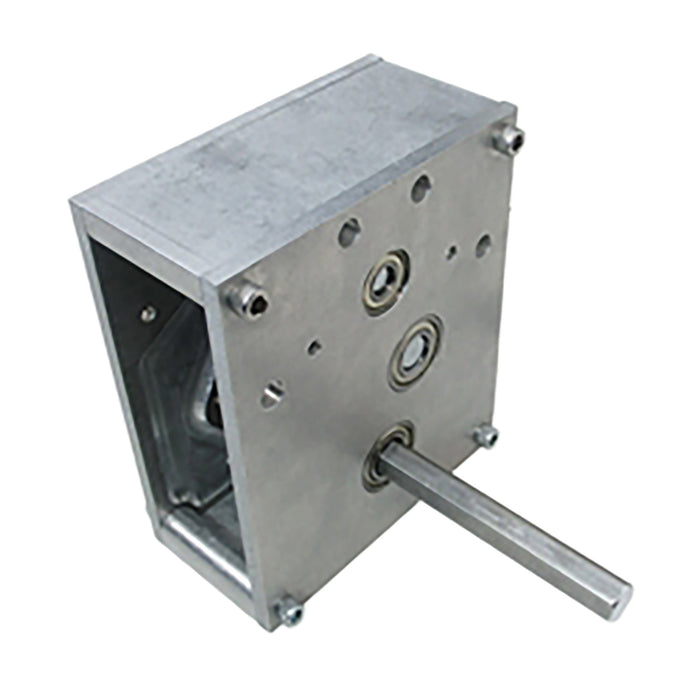

This shift-on-the-fly gearbox, uses a dog gear shifting method. Motor input accepts two CIM motors, or two AM Planetary Gearboxes or a combination of either (both not included). Two two shaft options are a round 1/2" 4140 steel shaft with a 1/8" keyway or 1/2" 7075 aluminum hex shaft.

Key Features:
  • The output shaft is centered on the gearbox.
  • CIM motor inputs centered on the gearbox.
  • The Sonic Shifter is lighter than the AM Shifter and Super Shifter designs.
  • Wider variety of gear ratio and shaft options available.
  • Will be shipped with either am-0174 or am-3132 encoder pre-installed.
Shift Style:
Two shifting methods are available for the Sonic Shifter. The pneumatic method is much stronger and faster than the servo method.
  • Pneumatic:
    • A pneumatic cylinder, Bimba model 04-0.5-DP, 3/4" bore x 1/2" stroke, (not included) shifts between high and low gear. This cylinder mounts with a 5/8-18 nut (not included). This is a strong, fast method of shifting, lasting under 0.5 seconds and pushing with 26 pounds of force (if using 60 psi). This pneumatic shift can be done while a robot is accelerating.
  • Servo:
    • A Servo Shifting hardware pack is available (am-2297), but not included with this product.
    • A Hi-Tech Servo, model HS-422HD is included in am-2297, using an actuation fork to shift between the 2 gear settings. This is a slow, weaker method of shifting (compared to pneumatic), taking 1.5-2 seconds and pushing with up to 8.5 pounds of force. A robot driver may need to back off of the throttle to let a servo shift gears while moving.
Product Usage:
All AndyMark gearboxes require grease for proper operation and long life. We suggest using our red tacky grease, am-2768. We also encourage that the user powers the gearbox continuously for 30 minutes without grease to allow the gear teeth to wear in. While we do design with short run times in mind, this 'run in' period for smooth gearbox operation, is recommended. Once this is completed, thorough grease of the gear teeth periodically to ensure smooth operation.

Motor Input:
Optional Sonic Shifter Output Shafts:
Upgrade from Super Shifter:
In order to change over a Super Shifter to a Sonic Shifter, these parts need to be purchased:
  • One - Sonic Shifter Motor Plate (am-2506)
  • One - Sonic Shifter Shaft Plate (am-2507)
  • Two - Sonic Shifter Spacer (am-2508)
Thanks to Evan from 2470 and Sean from 2489 for our new gearbox name, the "Sonic Shifter."

Specifications

  • Product Lifecycle: replaced by <a href='/products/evo-shifter?sku=EVO-2-226-060-SH2'>EVO-2-226-060-SH2</a>
