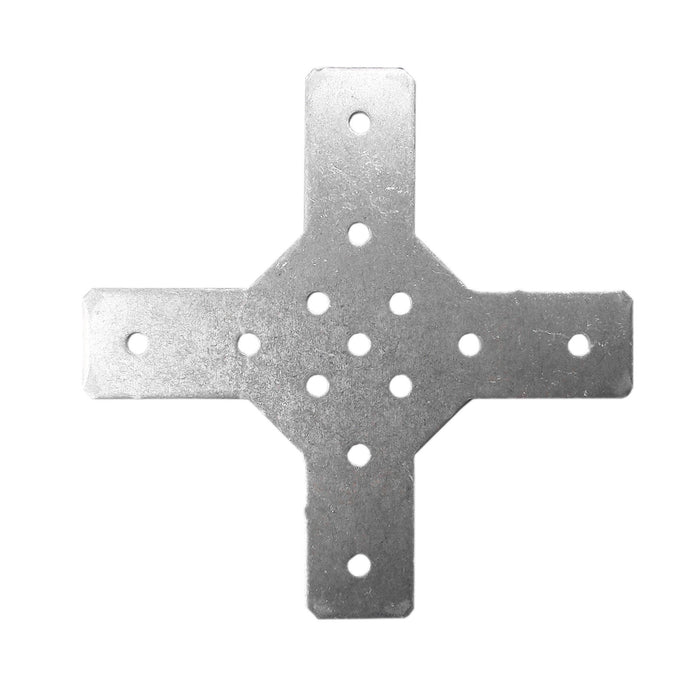

REV, 1 in. Cross Bracket
This cross-shaped flat bracket is used with the versatile, modular REV Building Products. When attaching 0.09-0.13" thick plates to this extrusion, use #10-32 x 3/8 screws, accompanied by #10-32 ny...Read More
Product Overview
This cross-shaped flat bracket is used with the versatile, modular REV Building Products.
When attaching 0.09-0.13" thick plates to this extrusion, use #10-32 x 3/8 screws, accompanied by #10-32 nylock jam nuts.
When attaching 0.09-0.13" thick plates to this extrusion, use #10-32 x 3/8 screws, accompanied by #10-32 nylock jam nuts.
Specifications
- Length Across: 5.0 in.
- Material: 5052 Aluminum
- Mount Style: 0.2 in. holes on a 1 in. grid
- Product Lifecycle: available at <a href='https://www.revrobotics.com/rev-21-1582/' target='_blank'>REV Robotics</a>
- Thickness: 0.09 in.
- Weight: 0.82 lbs
Documents
Layout Print(s)
CAD File(s)
Don't see what you need?
Returns
Returns are not accepted for this product.
Recommendations
2 reviews
-
Great for making quick frames
These match the REV extrusions for making quick joints for frames.
-
part of our REV Extrusion Elevator design
part of our REV Extrusion Elevator design
