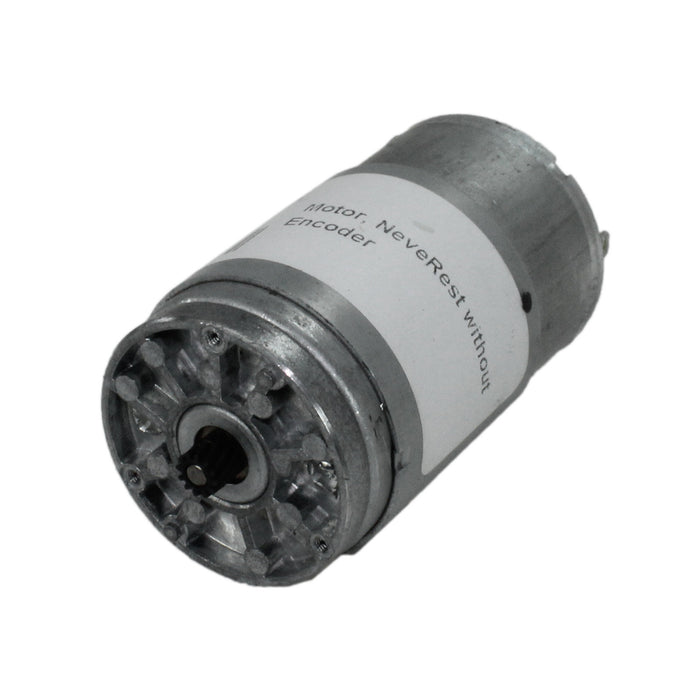

NeveRest Motor without Encoder
This is an no encoder version of the Classic NeveRest motor. This means feedback cannot be be received on this motor but the price is almost half of the original. Don't need feedback? Select this m...Read More
0 reviews
Write a ReviewProduct Overview
This is an no encoder version of the Classic NeveRest motor. This means feedback cannot be be received on this motor but the price is almost half of the original. Don't need feedback? Select this motor and save!
FRC/FTC Legality:
FRC/FTC Legality:
- According to the FIRST Tech Challenge Game Manual Part 1, Rule RE09, this is legal for the 2018 FTC Game.
- According to the FIRST Robotics Challenge Game Manual, Rule R33, this is legal for the 2018 FRC Game as it is the NeveRest am-3104 motor, just without an encoder.
Specifications
- Bolt Pattern: 2 M3x0.5 Holes on a 0.98 in. diameter bolt circle
- Material: Steel
- Maximum Diameter: 1.5 in.
- Mounting Holes: 2x M3-0.5 x 0.157 in. deep
- Overall Length: 3.2 in.
- Product Lifecycle: discontinued
- Stall Current: 11.5 AMPs
- Stall Torque: 8.75 oz-in
- Voltage: 12 Volts DC
- Weight: 0.518 lbs
Documents
CAD File(s)
Layout Print(s)
