Nano Tube 31, Left, Three 1/2 in. Key Shafts, 25 Chain Drive
Product Usage:All AndyMark gearboxes require grease for proper operation and long life. We suggest using our red tacky grease, am-2768. We also encourage that the user powers the gearbox continuous...Read More
This item is currently out of stock
Be of the first to know when this item becomes available
Sign up for a notification when available
0 reviewsWrite a Review
All AndyMark gearboxes require grease for proper operation and long life. We suggest using our red tacky grease, am-2768. We also encourage that the user powers the gearbox continuously for 30 minutes without grease to allow the gear teeth to wear in. While we do design with short run times in mind, this 'run in' period for smooth gearbox operation, is recommended. Once this is completed, thoroughly grease the gear teeth periodically to ensure smooth operation.

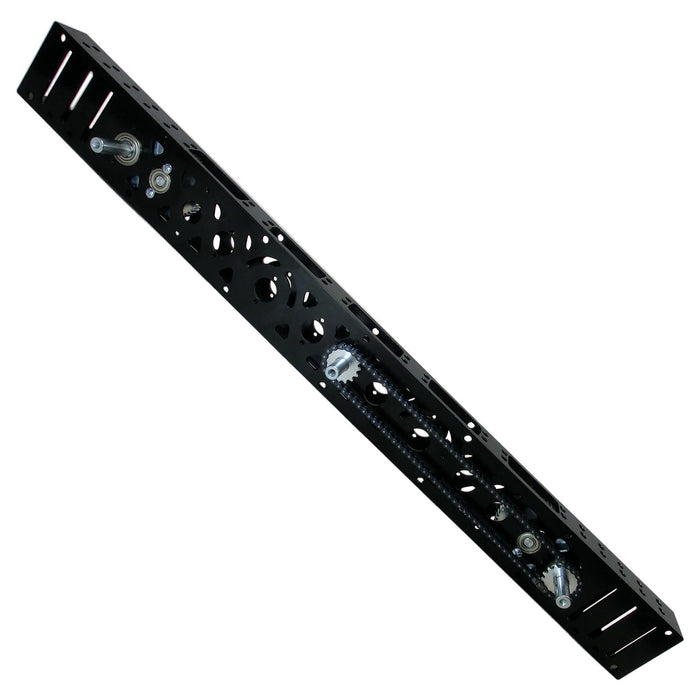

This 31-inch-long Nano Tube houses two complete gearboxes, each having the same gearing and shafts as the Nano with 500 Key Shaft. This unit also has a third central shaft, which is dropped by 0.13 inch compared to the end shafts. This central shaft is driven by a 25-series chain from one of the end drive shafts. Nano Tube accepts two 2.5 inch CIM Motors. Hardware is included for attaching this motor.
This product is intended to be used as a complete drive module for the side of a 6-wheel-drive robot. A second tube is to be used on the opposite side of the robot in order to make the complete drive chassis. Version: 3-shaft, 500 Key, Chain Drive
Weight: 5.4 pounds, not including motors and encoders
Optional Gear Ratios:
|Ratio||CIM Gear||Lg. Cluster Gear||Sm. Cluster Gear||Lg. Output Gear|
|10.71:1||14 tooth||50 tooth||16 tooth||48 tooth|
|8.45:1||14 tooth||50 tooth||19 tooth||45 tooth|
|5.95:1||14 tooth||50 tooth||24 tooth||40 tooth|
Weight Reduction with Optional Parts:
Aluminum Large Cluster Gear can replace the standard steel 50 Tooth Large Cluster Gear.
Aluminum Large Output Gear can replace the standard steel 50 Tooth Large Output Gear.
An optional Encoder Package can be purchased and added to this Toughbox. If you already have a US Digital Encoder to fit this Toughbox, this Encoder Mount Pad will help you mount the encoder to the Toughbox. Here is a guide for encoder installation and alignment.
Aluminum Hex Output Shafts:
The Toughbox Nano Tube can use an optional Short 1/2" Hex Aluminum Output Shaft with Magnet for ToughboxÂ® Series (am-am-0397a) as a separate purchase but a FR8ZZ-Hex bearing MUST also be ordered SEPARATELY to replace the FR8ZZ bearing supporting each output shaft. Also, the sprockets must be swapped out for 1/2" hex bore sprockets.
Chain and Sprocket Specifications:
- Chain size: ANSI 25 series
- Sprockets: Two S25-16HA-500K Aluminum Sprockets (am-0277)
- Center distance: 13.76 inches
Bearings, chain and screws were not made in the USA. All other components were designed, manufactured and assembled in the United States of America.
- Gear Type: spur gears, 20 dp, 14.5 degree pressure angle
- Input Gear: CIM Gear, 14 tooth, 0.315 in. bore w/ 2mm keyway
- Large Cluster Gear: 50 tooth, 3/8 in. hex bore
- Large Output Gear: 50 tooth, 1/2 in. hex bore
- Material: 4140 steel,6061 aluminum
- Output Shaft: 1/2 in. diameter, 4140 steel with 1/8" keyway
- Small Cluster Gear: 14 tooth, 3/8 in. hex bore
