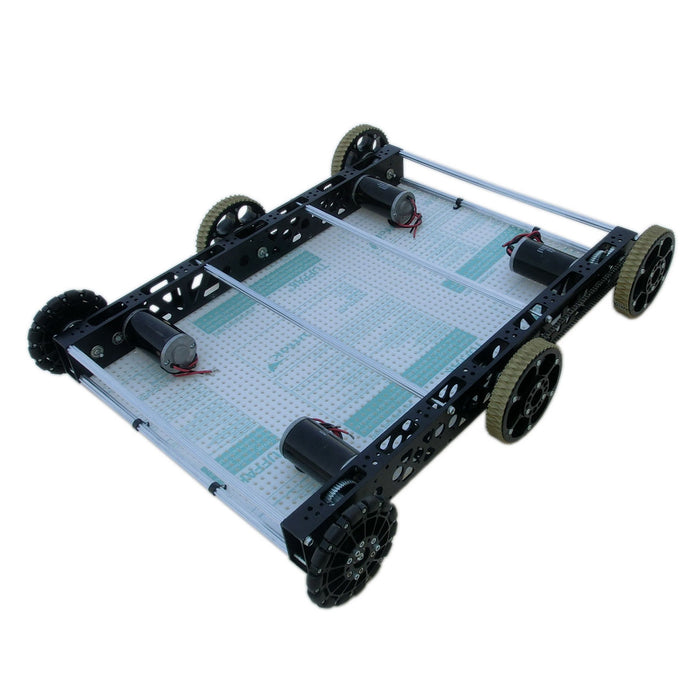

Nano Tube 31 in. 3 Shaft, 6wd 6 in. Plaction Wedgetop

am-0964

$1,030.00

This product is currently unavailable for purchase.

Chain Driven, six wheel drive chassis using 6 in. Plaction Wheels, with Roughtop Tread. Gears are housed in frame, using two 31 in. Nano Tubes.Included Hardware:

0 reviews

Write a Review

Product Overview

Chain Driven, six wheel drive chassis using 6 in. Plaction Wheels, with Roughtop Tread. Gears are housed in frame, using two 31 in. Nano Tubes.

Included Hardware:

Specifications

  • Estimated Chassis Weight: 32.5 lbs
  • Estimated Maximum Speed: 8.2 ft/sec
  • Ground Clearance: 1.25"
  • Height: 6"
  • Length: 33.5"
  • Load Capacity: 600 lbs based on wheels
  • Motors: 4 CIM motors
  • Width: 27"
