Nano Tube 20 in. Chassis, 2 gearboxes, 4 - 500 key shafts

am-0969KIT

$447.00

This product is currently unavailable for purchase.

This is a 20 in. long Nano Tube chassis that would be driven with two motors and is ready for a battery, wheels and controls.This chassis comes without wheels, but with spacers, machine keys, and h...Read More

0 reviews

Write a Review

Product Overview

This is a 20 in. long Nano Tube chassis that would be driven with two motors and is ready for a battery, wheels and controls.

This chassis comes without wheels, but with spacers, machine keys, and hardware to contain a wheel on the 1/2 in. diameter output shaft. This hardware is included to handle a 500 Key Hub (not included), which needs to be attached to the wheel of your choice.

Also, this is a bare mechanical chassis. A control system will need to be added to make this chassis come to life.

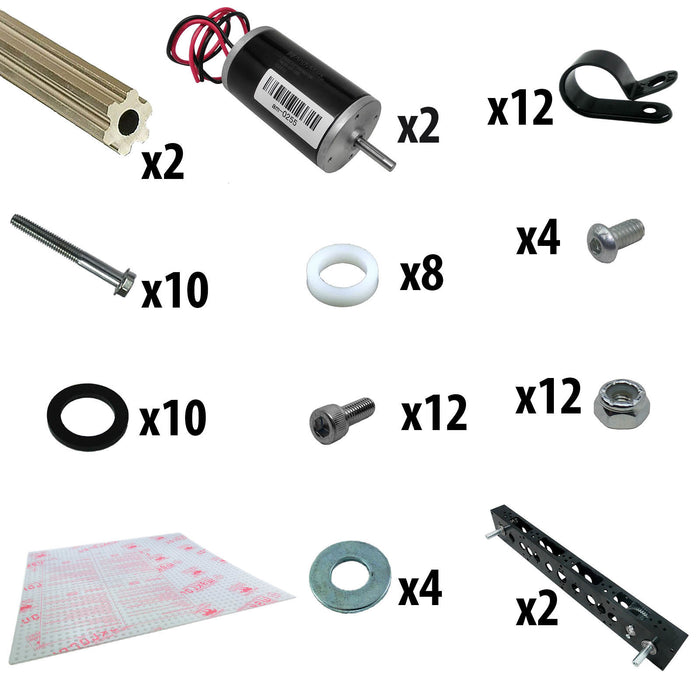

Included Hardware:Recommended wheel options:
Don't forget to buy Hubs and Spacers for each of these wheels.

Specifications

  • Estimated Chassis Weight: 17 lbs
  • Estimated Maximum Output Torque at Each Powered Wheel: 20 ft-lb
  • Estimated Maximum Speed: (depends on wheels)
  • Height: 3"
  • Length: 20" (gearbox extrusion length)
  • Load Capacity: 400 lbs (based on wheels)
  • Motors: Two CIM Motors (am-0255)
  • Width: 21" (suggested,measuring from outside face of gearbox to opposite outside face)With the Cross Hex Tubes included,this could be as much as 23"
