FlexHub, designed by engineers from iR3 Creative Engineering, from Orlando, Florida. FlexHub is a modular gear & hub solution. The concept is pretty simple. There is a hub, there is a gear, the...Read More

0 reviews

Write a Review

View Full Details

Product Overview

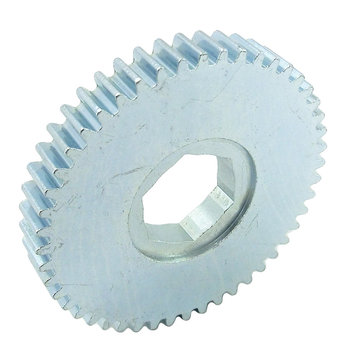

FlexHub, designed by engineers from iR3 Creative Engineering, from Orlando, Florida. FlexHub is a modular gear & hub solution. The concept is pretty simple. There is a hub, there is a gear, there are two retaining rings. Put them together into your assembly. If the gear ratio / shaft size / output / whatever isn’t working rinse and repeat with a new hub or gear.

All Flex Hubs fit all Flex Hub gears

Part # Type Bore CAD Weight
am-2427 Hub 3/8 Hex STP 0.04 lbs
am-2428 Hub 1/2 Hex STP 0.03 lbs
am-2429 Hub 3/8 Keyed STP 0.04 lbs
am-2430 Hub 1/2 Keyed STP 0.03 lbs
am-2431 Hub 10 mm Keyed STP 0.04 lbs



Part # Type # of Teeth Pitch Diameter CAD Weight
am-2347 Gear 32 1.60 inch STP 0.13 lbs
am-2349 Gear 40 2.00 inch STP 0.25 lbs
am-2350 Gear 45 2.25 inch STP 0.33 lbs
am-2351 Gear 48 2.40 inch STP 0.38 lbs
am-2352 Gear 50 2.50 inch STP 0.42 lbs

Specifications

  • Bore: 0.75 in. Hex
  • Material: Steel
  • Product Lifecycle: discontinued
  • Width: 0.400 in.
