FlexHub Gears
$13.00
$8.00
FlexHub, designed by engineers from iR3 Creative Engineering, from Orlando, Florida. FlexHub is a modular gear & hub solution. The concept is pretty simple. There is a hub, there is a gear, the...Read More
0 reviews
Write a ReviewProduct Overview

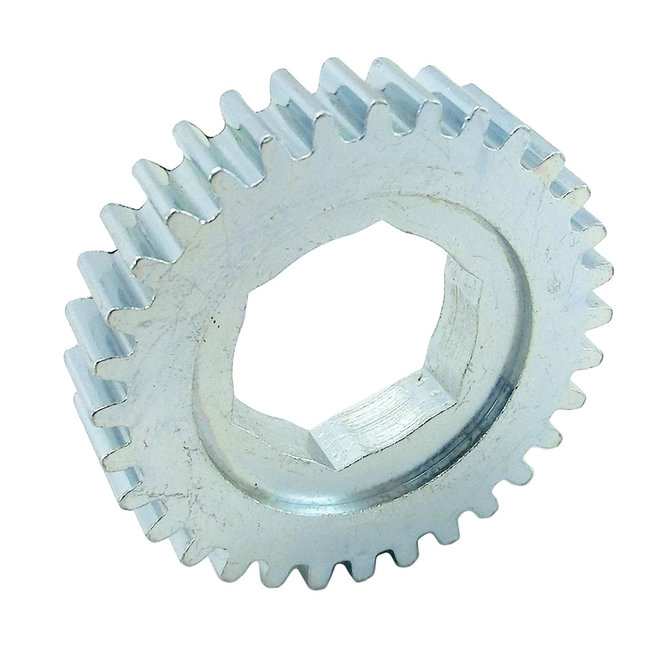

FlexHub, designed by engineers from iR3 Creative Engineering, from Orlando, Florida. FlexHub is a modular gear & hub solution. The concept is pretty simple. There is a hub, there is a gear, there are two retaining rings. Put them together into your assembly. If the gear ratio / shaft size / output / whatever isn’t working rinse and repeat with a new hub or gear.
All Flex Hubs fit all Flex Hub gears
| Part # | Type | Bore | CAD | Weight |
| am-2427 | Hub | 3/8 Hex | STP | 0.04 lbs |
| am-2428 | Hub | 1/2 Hex | STP | 0.03 lbs |
| am-2429 | Hub | 3/8 Keyed | STP | 0.04 lbs |
| am-2430 | Hub | 1/2 Keyed | STP | 0.03 lbs |
| am-2431 | Hub | 10 mm Keyed | STP | 0.04 lbs |
| am-2432 | Hub | 8 mm Keyed | STP | 0.04 lbs |
| Part # | Type | # of Teeth | Pitch Diameter | CAD | Weight |
| am-2347 | Gear | 32 | 1.60 inch | STP | 0.13 lbs |
| am-2348 | Gear | 35 | 1.75 inch | STP | 0.17 lbs |
| am-2349 | Gear | 40 | 2.00 inch | STP | 0.25 lbs |
| am-2350 | Gear | 45 | 2.25 inch | STP | 0.33 lbs |
| am-2351 | Gear | 48 | 2.40 inch | STP | 0.38 lbs |
| am-2352 | Gear | 50 | 2.50 inch | STP | 0.42 lbs |
Other Modulox Parts:
| Part # | Description | CAD | Weight | Price |
| am-2415 | 22 tooth, 25 series, 7075 Aluminum Sprocket | STP | 0.03 lbs | $16.00 |
| am-2444 | PG Block for Modulox | 0.02 lbs | $10.00 | |
| am-2445 | FlexHub Flange | 0.09 lbs | $9.00 |
Specifications
- Bore: 0.75 in. Hex
- Material: Steel
- Width: 0.400-0.410 in.
