FlexHub Flange
am-2445
$13.00
$9.00
Product Overview:This is a flat plate, acting as a hub flange. The FlexHub hubs can be inserted into this flange in order to make modular hubs, perfect for prototyping mechanisms.We suggest using...Read More
Product Overview
Product Overview:

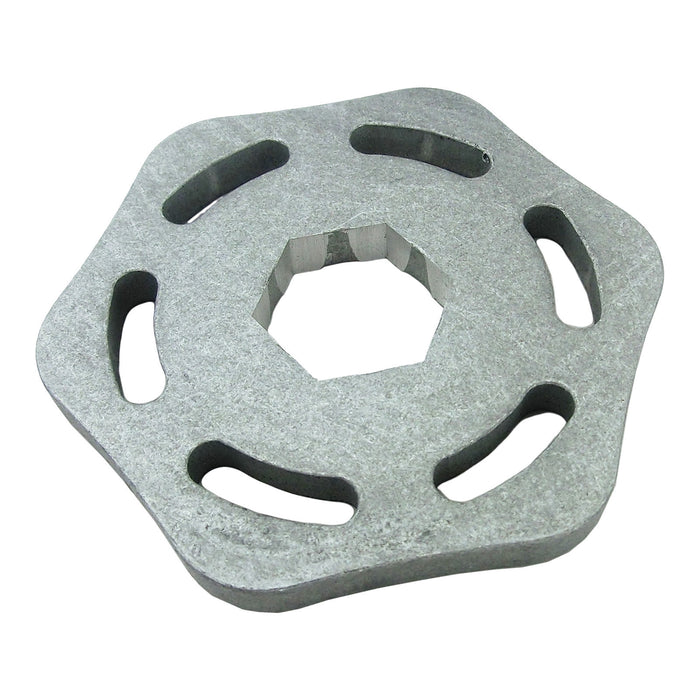

This is a flat plate, acting as a hub flange. The FlexHub hubs can be inserted into this flange in order to make modular hubs, perfect for prototyping mechanisms.
We suggest using washers and lock nuts when fastening to this flange, as the slots are present for flexible alignment.
Specifications:
This is a flat plate, acting as a hub flange. The FlexHub hubs can be inserted into this flange in order to make modular hubs, perfect for prototyping mechanisms.
We suggest using washers and lock nuts when fastening to this flange, as the slots are present for flexible alignment.
Specifications:
- Material: 6061-T6 Aluminum
- Thickness: 0.25 inch
- Bore: 0.75", fitting all FlexHubs
- Bolt pattern: 1.875" slot circle for #10 screws (6)
- Weight: 0.09 pounds
Specifications
- Bolt Circle: 1.875" slot circle for #10 screws (6)
- Bore: 0.75", fitting all FlexHubs
- Material: 6061-T6 Aluminum
- Thickness: 0.25 in.
- Weight: 0.09 lbs
