Everybot 2022 Passive Hanger Structure Kit

am-4690

$245.00

This Structure Kit paired with our Hook kit, provides a passive means for a robot to hang on the Low Rung or Mid Rung. No motors or air cylinders are required for those sweet sweet end-game points!...Read More

0 reviews

Write a Review

View Full Details

Product Overview

This Structure Kit paired with our Hook kit, provides a passive means for a robot to hang on the Low Rung or Mid Rung. No motors or air cylinders are required for those sweet sweet end-game points! This Structure kit contains various aluminum extrusions, brackets, and all the hardware you will need to mount the hooks to your robot at the appropriate height.

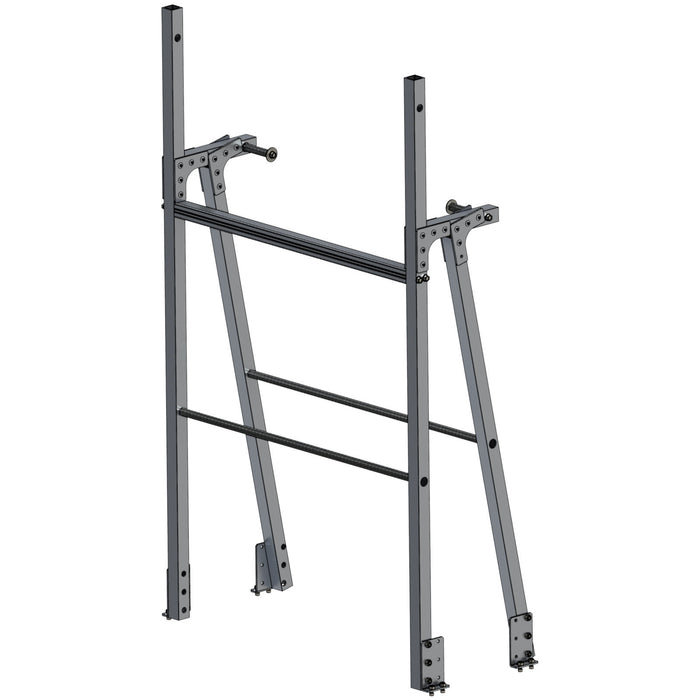

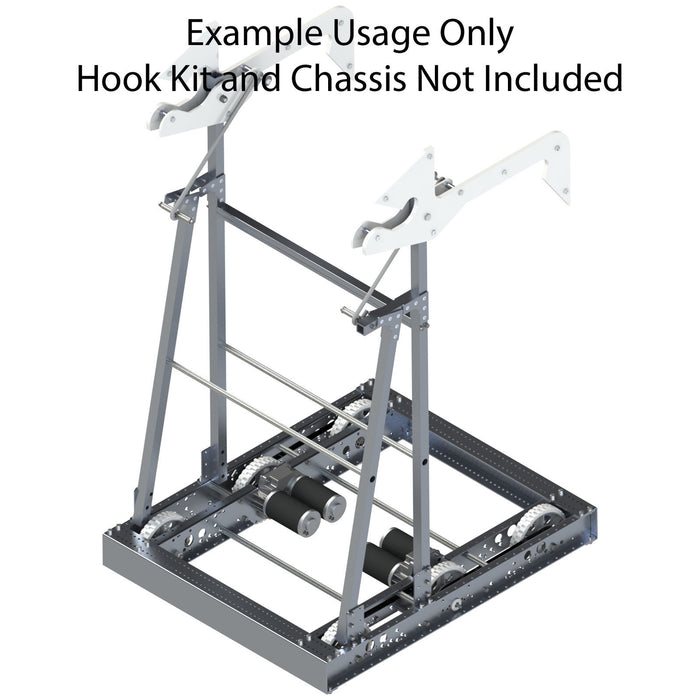

This structure kit creates an A-frame-style structure to secure the hooks in space and ties the frame to the AM14U5 or AM14U4. This structure kit is designed with the long configuration in mind as that's the most commonly seen. If you are using a wider style chassis, longer churro than what is provided will be needed, and some cuts will be different. Pay close attention to your weight distribution when considering this hook kit. Unbalanced robots which are suspended, may come to rest on the floor and not receive end-game points.

AndyMark is happy to be working with team 118 and their incredible Everybot team to make the featured passive climber available to all teams. The Everybot is an affordable, competitive, and elegant robot that can be created from accessible materials and tools. We are honored to be working directly on the Everybot project as we have admired the ambition and the team behind it since its beginning.

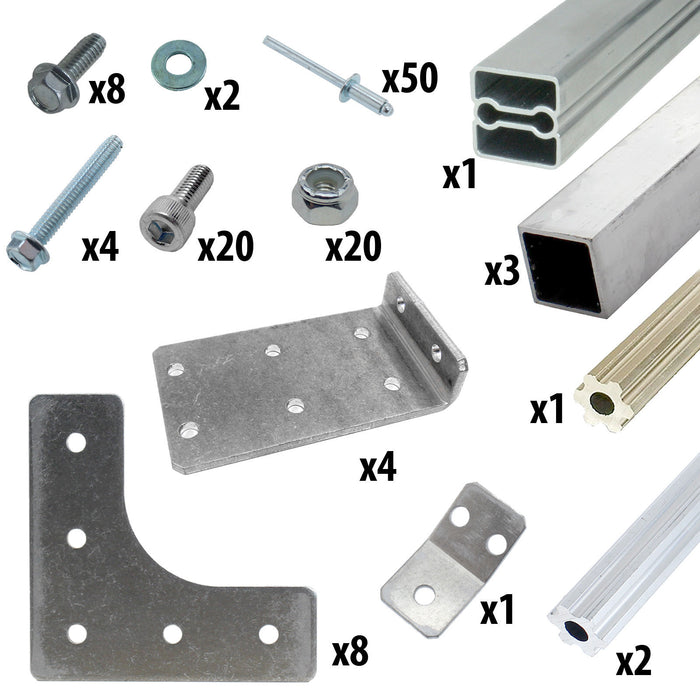

Items Included:

  • 3 - 6ft 1x1 in. Profile Box Tube Extrusion (am-4203-6)
  • 1 - 36 in. Silver Peanut Extrusion (am-3090-3)
  • 2 - 24.25 in. Silver Churro (am-2974)
  • 8 - 1 in. 90 Degree Gusset (am-3860)
  • 4 - L-Bracket with 2x3 hole pattern (am-2954)
  • 8 - 1/4-20 x 0.75 in. Self Tapping Hex Washer Head Screw (am-1310)
  • 4 - 1/4-20 x 1.75 in. Thread Forming Screw Hex Washer Head (am-1372)
  • 2 - 1/4 in. Inside Diameter Fender Washer (am-1421)
  • 50 - 3/16 in. Diameter 0.126 to 0.25 in. Grip Steel Rivet (am-1226)
  • 20 - 10-32 x 0.5 in. Socket Head Cap Screw (am-1002)
  • 20 - 10-32 Nylock Nut (am-1042)
  • 1 - Peanut Bracket as drill guide (am-3874)
  • 2 - 1/2 in. Churro Different Lengths (am-2569)

Returns

Returns are not accepted for this product.
