Connector Female 2-Pos 8-20 AWG Cage Clamp WAGO 831-3102
Here is the Multi Connection System Maxi from WAGO. This is the Female connection side of an industrial connection solution. This connector is great for users who don't want to crimp and build thei...Read More
0 reviews
Write a ReviewProduct Overview
Here is the Multi Connection System Maxi from WAGO. This is the Female connection side of an industrial connection solution. This connector is great for users who don't want to crimp and build their own connection system.
This connector mates with the Male (am-2303) version of the same connector.

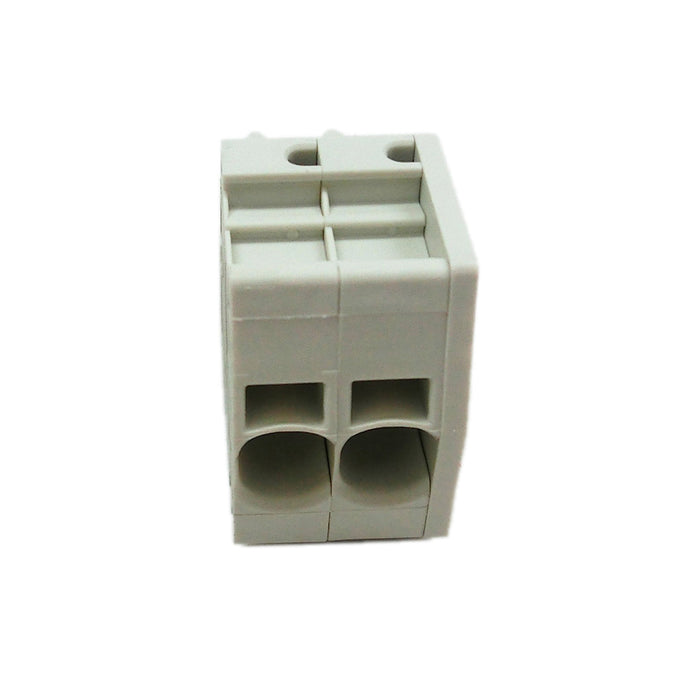

Only one 831-3102 connector is included in this part. The above picture simply shows two views of the same connector.
This connector mates with the Male (am-2303) version of the same connector.
Only one 831-3102 connector is included in this part. The above picture simply shows two views of the same connector.
Specifications
- Connecting Tech: Female
- Gauge: 08-20 AWG
- Maximum Current: 50 AMPs
- Pin spacing: 7.62 mm/0.3 in.
- Positions: 2
- Product Lifecycle: discontinued
- Size: 1.63 x 0.69 x 1.06 in.
- Voltage: 300/600 V
- Weight: 0.03 lbs
