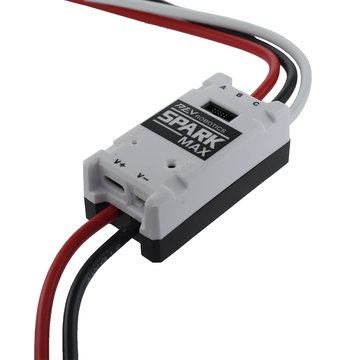

Ships From Sydney - REV SPARK MAX Brushless and Brushed DC Motor Controller

The SPARK MAX is the brushless version of SPARK Motor Controller family. Building on the robust foundation of the original, SPARK MAX incorporates advanced brushed and brushless DC motor control in a small and easy-to-use package with PWM, CAN, and USB connectivity.

Never before has an FRC motor controller featured a built-in USB interface for configuration and control. Users can test prototypes and tune parameters without needing the full control system. SPARK MAX is a true all-in-one controller that will push the envelope for teams.

Features:

• Brushed and Sensored-brushless Motor Control: Drive brushless and brushed motors!
• Interfaces:
  • PWM, CAN, USB: Drive the controller with PWM or CAN and configure the controller from your computer.
• USB Configuration and Control
  • USB type C connector
  • Rapid configuration with a PC
  • Save/Load Configurations
  • Realistic prototyping using the actual control parameters
• Smart Control Modes
  • Closed-Loop Control
  • Follower Mode
• Data Port (data port cable am-2617 not included)
  • Analog Input
  • Limit Switch Input
  • Quadrature Encoder Input with Index
• Brushless DC Sensor Connector
  • 3-phase Hall Sensors
  • Motor Temperature Sensor
• Compatible with the Following Motors:
• NEO Brushless Motor
• NEO 550 Brushless Motor
• CIM Motors
• Redline Motors

Included Items:

Included Components with SPARK MAX:

• 1 - JST to PWM Cable for PWM Control
• 1 - JST to CAN Cable for CAN Control
• 1 - USB Type C to USB A Cable for controller configuration
• 1 - Data Port Cover to keep debris and dust out while not in use

----------------------------------------------------------------------------------------------------

Warranty:

Email support@revrobotics.com and include your AndyMark order number.

View documentation for this product on the REV website.
