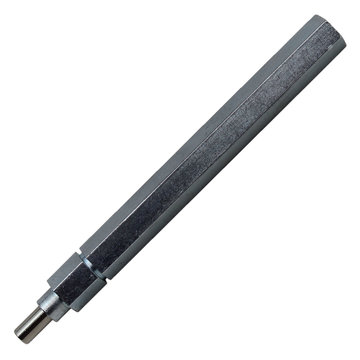

Ship From Sydney - 1/2 in. Hex Steel AM14U Family Output Shaft with Magnet for Toughbox Series
am-2566aAUS
$13.00
This is the 1/2" hex steel output shaft for the Toughbox® series gearboxes when used with the AM14U3. This shaft includes a pre-installed magnet designed specifically with the E4T OEM Miniature O...Read More
0 reviews
Write a ReviewProduct Overview
This is the 1/2" hex steel output shaft for the Toughbox® series gearboxes when used with the AM14U3. This shaft includes a pre-installed magnet designed specifically with the
E4T OEM Miniature Optical Encoder (am-3132AUS) and SRX Magnetic Encoder (am-3445)
in mind. This shaft has replaced am-2566.
Usage:
If using this shaft with the SRX Magnetic Encoder (am-3445), the SRX Magnetic Encoder Mounting Hardware Kit (am-3565) will be needed. The hardware allows for proper spacing of the encoder from the shaft magnet on Toughbox® Series Gearboxes and the EVO Shifter.
Usage:
If using this shaft with the SRX Magnetic Encoder (am-3445), the SRX Magnetic Encoder Mounting Hardware Kit (am-3565) will be needed. The hardware allows for proper spacing of the encoder from the shaft magnet on Toughbox® Series Gearboxes and the EVO Shifter.
Specifications
- Diameter of Magnet: 0.249"
- Diameter of Small End: 0.37"
- Hex Width: 0.50"
- Material: 1018,1215,or 12L14 Steel
- Overall Length: 4.24"
- Weight: 0.30 lbs
