AndyMark Version of FRC 2017 Kit of Parts - Gray

Looking to start a FIRST Robotics Competition team, or looking to get the closest thing to the Gray Tote portion of the Kit of Parts?

This kit is the AndyMark conversion of the Gray Tote portion of the Kit of Parts. We've changed a few items up for items we sell, and tried to get as close as we could. We also included the Separate Items Checklist with this kit, substituting the Square Tube for Peanut Extrusion. We're not far off, check it out for yourself.


Please check the web links below for Specifications and more detailed items on these individual parts.

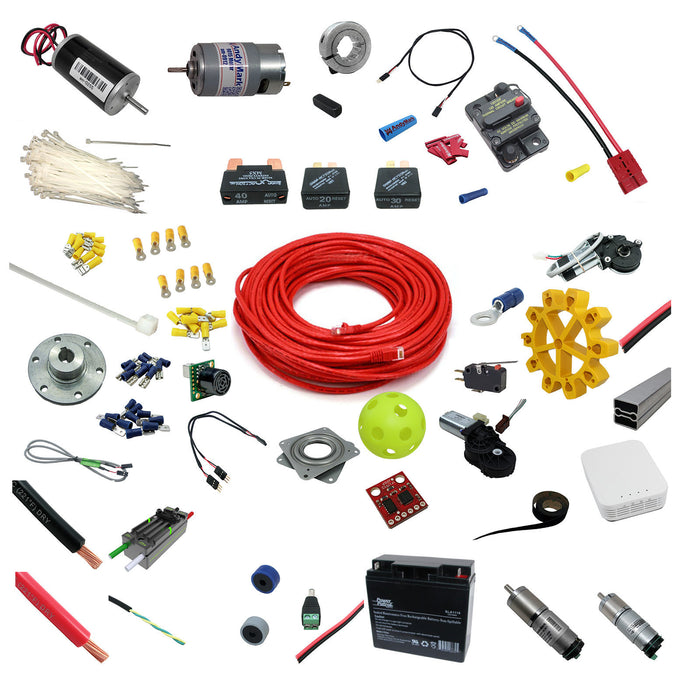

Included Hardware:

• 3 - am-0009 - Battery Cable
• 4 - am-0255 - 2.5" CIM Motor
• 1 - am-0282 - 120 Amp Circuit Breaker
• 6 - am-0288 - 40 Amp Snap Action Breaker
• 2 - am-0289 - 20 Amp Snap Action Breaker
• 2 - am-0290 - 30 Amp Snap Action Breaker
• 4 - am-0694 - 3-wire PWM extension cable, 24", 22 GA wire, universal servo connector on each end: 1 male, 1 female
• 8 - am-0805 - Compression Lug Connector, #6 AWG, 1/4" Stud
• 3 - am-0895 - AndyMark Shrink Tubing (6-8AWG), Qty 10
• 1 - am-0904 - elec -12 gauge red black bonded wire, 25ft length
• 1 - am-0942 - Cat5 Cable, Shielded, Red Molded, 75 ft.
• 1 - am-0974 - 12-10 Wire #8 Stud Vinyl Insulated Ring Terminals, Bag of 8
• 2 - am-0985a - 10mm Key Hub
• 1 - am-1188 - Cable Ties, 4", Natural Nylon, 18 lb. tensile, Bag of 100 pcs
• 1 - am-1189 - Cable Ties, 8", Natural Nylon, 75 lb. tensile, Bag of 100 pcs
• 2 - am-1238 - Collar Clamp, 1/2" Hex Bore, Aluminum
• 4 - am-1249 - 4mm x 12mm Machine Key Steel
• 3 - am-2121 - AndyMark Shrink Tubing (6-12AWG) Qty 10
• 1 - am-2133 - Cable, 2-wire, 24 inch
• 1 - am-2211 - Connector, Female, 12-10 AWG, Tab .032"x.250", Yellow, Qty 10
• 1 - am-2212 - Connector, Female, 16-14 AWG, Blue, Tab .020"x.187", Qty 10
• 1 - am-2213 - Connector, Male, 12-10 AWG, Yellow, Tab .032"x.250", Qty 10
• 1 - am-2214 - Connector, Male, 16-14 AWG, Tab .020"x.187", Qty 10
• 2 - am-2235 - Snow Blower Motor
• 2 - am-2261 - 3-wire PWM Y-cable, 8 inch
• 1 - am-2435 - Ultrasonic proximity sensor, EZ0, MB1200, MaxBotix
• 1 - am-2637 - Butt Connector, 12-10 AWG, Yellow, Qty 10
• 1 - am-2638 - Butt Connector, 16-14 AWG, Blue, Qty 10
• 1 - am-2708 - Ring terminal Connector, 16-14 AWG Wire #8 Stud Vinyl Insulated, Bag of 8
• 1 - am-2771 - 3" Lazy Susan Bearing
• 1 - am-2839 - 18 gauge red black bonded wire, 25ft length
• 1 - am-2840 - 6 gauge black multistrand wire, 10ft length
• 1 - am-2841 - 6 gauge red multistrand wire, 10ft length
• 4 - am-2854 - Talon SRX Speed Control
• 1 - am-2923 - PG27 Gearmotor with encoder
• 1 - am-2971 - PG71 Gearmotor w/ Hall Effect Encoder
• 1 - am-3062 - Power Patrol Battery, SLA1116, Qty. 2
• 1 - am-3071 - CAN Cable, 10ft
• 1 - am-3082 - Power Cable for Arduino Or OpenMesh Radio
• 3 - am-3090-3 - Peanut Extrusion, 3ft
• 2 - am-3155 - 2" Stealth Wheel, 1/2" Hex 77 Durometer Gray
• 2 - am-3155_blue - 2" Stealth Wheel, 1/2" Hex 50 Durometer Blue
• 1 - am-3205 - Open-Mesh OM5P-AC Dual Band 1.17 Gbps Access Point
• 1 - am-3302 - Plastic Gear, 10 tooth, 2 halves and screws
• 2 - am-3372 - Micro Switch
• 2 - am-3376_6 - FRC17 >ResisDent Ball, Pack or 6
• 1 - am-2314 - 6 Degrees of Freedom IMU Digital Combo Board
• 1 - am-3564 - Bosch Seat Motor AND Harness Cable
• 1 - Hook & Loop Fastener, Adhesive Back, 2"W x 25'L
