AM14U3 Upgrade Kit 4 in. HD Mecanum Wheels
Upgrade your AM14U3 to a 4" HD Mecanum Wheel Drive. This chassis uses one 8.45:1 Ratio Toughbox Micro and an additional external 1:1 gear set to get a good ratio for the 4" HD Mecanum Drive. This i...Read More
0 reviews
Write a ReviewProduct Overview

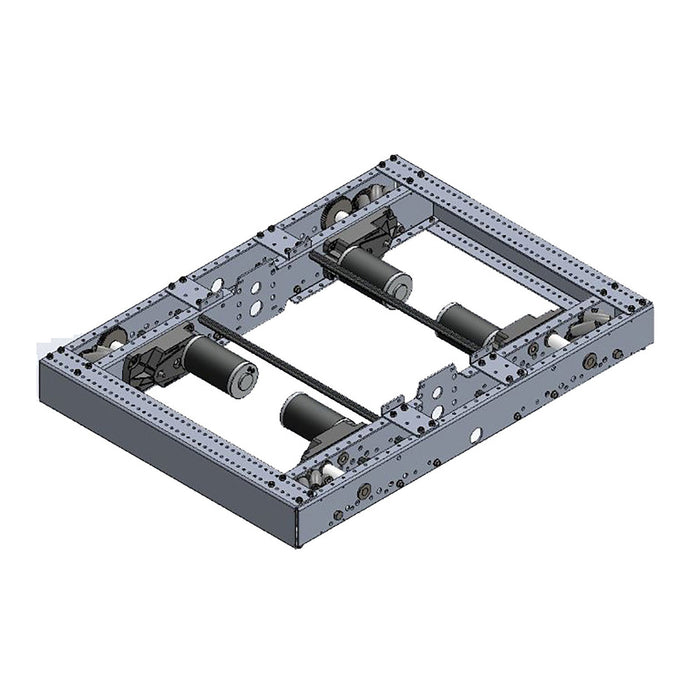

Upgrade your AM14U3 to a 4" HD Mecanum Wheel Drive. This chassis uses one 8.45:1 Ratio Toughbox Micro and an additional external 1:1 gear set to get a good ratio for the 4" HD Mecanum Drive. This is a low ground clearance omni directional drive option for your AM14U3 Drive Base. This kit is designed to work as an add-on to the AM14U3 drive chassis or the AM14U3 Frame Only Kit. Kit includes the necessary, hardware and spacers to add 4" HD Mecnaum wheels to the chassis. This product is sold as a KIT and does not include the AM14U3 Chassis, only the components needed to add the additional wheels and properly space the outside plates from the inside plates.
Individual Parts Include:
Individual Parts Include:
- 4 - 1/2" Hex Bore, Flanged, Heavy Duty Inner Race Shielded Ball Bearing (FR8ZZ-HexHD) (am-2986)
- 4 - 3/8" id, 1-1/8 od, flanged ball bearing (am-0573)
- 8 - 185x385, nylon, 0.625 od, 0.385 id, 0.185 thick, white (am-2271)
- 12 - Nylon Washer, 1125 x 629 x 128 (am-1358)
- 2 - 4" HD Mecanum, Single Right (am-3026R)
- 2 - 4" HD Mecanum, Single Left (am-3026L)
- 4 - Toughbox® Micro 8.45:1 (am-3232_84)
- 4 - 50T 20DP 1.124" Round Bore, Steel Geer (am-3209)
- 4 - 50T 20DP 0.5" Hex Bore, Steel Gear (am-0150)
- 4 - Spacer, 2.425" x .602 Bore (am-3544)
Specifications
- Product Lifecycle: replaced by <a href='/products/am14u4-upgrade-kit-4-in-hd-mecanum-wheels-1'>am-14U4_MK4</a>
Documents
Layout Print(s)
