AM14U Family Horizontal Battery Mount Side Bracket
This bracket is the sidewall of the AM14U family Horizontal Battery Mount kit. Two of these make up the walls of the battery mounting kit, but this bracket is available separately as a replacement ...Read More
0 reviews
Write a ReviewProduct Overview

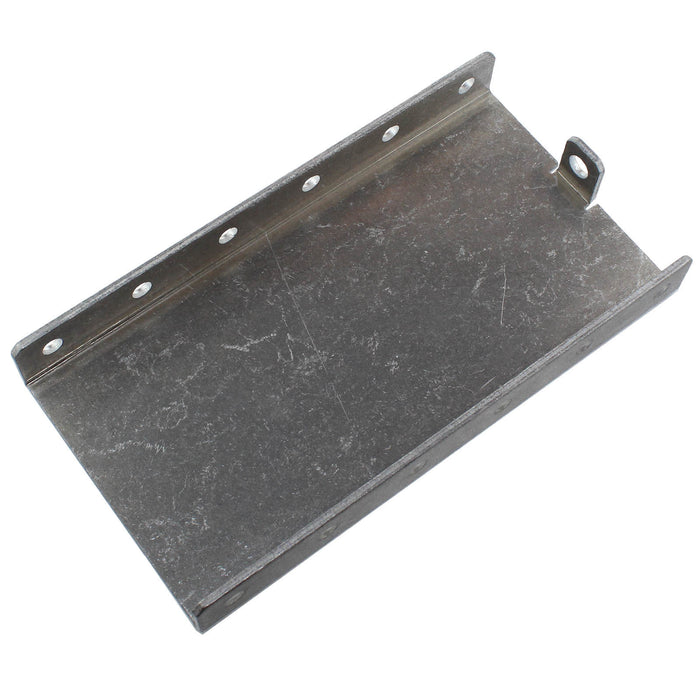

This bracket is the sidewall of the AM14U family Horizontal Battery Mount kit. Two of these make up the walls of the battery mounting kit, but this bracket is available separately as a replacement part, or as a good blank-canvas C shaped bracket.
Specifications
- Depth: 0.750 in.
- Height: 3.050 in.
- Hole Pattern: 6 0.210 in. Holes 1.0 in. apart on each flange
- Length: 5.750 in.
- Material: 5052 Aluminum
- Product Lifecycle: replaced by <a href='/products/am14u-family-vertical-battery-tray'>am-3964a</a>
- Thickness: 0.090 in.
Returns
Returns are not accepted for this product.
