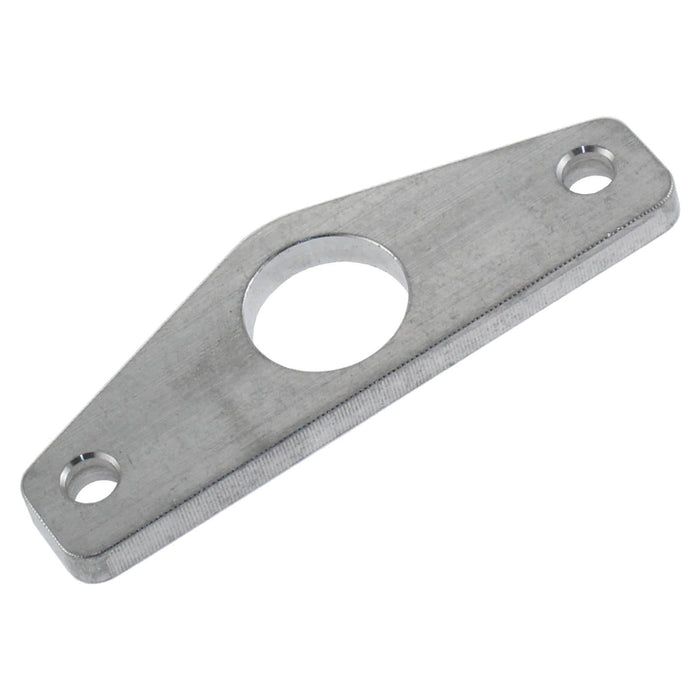

AM Shifter Cylinder Mount Plate

This product is currently unavailable for purchase.

This is to mount a pneumatic cylinder to your Shifters.

star star star star star

Read Reviews (1) Write a Review

View Full Details

Product Overview

This is to mount a pneumatic cylinder to your Shifters.

Specifications

  • Material: Aluminum
  • Product Lifecycle: discontinued
  • Thickness: 0.29 in.
  • Weight: 0.025 lbs

Documents

Layout Print(s)
am-2263 Cylinder Plate REV2.PDF
CAD File(s)
am-2263 Cylinder Plate REV2.STEP
Don't see what you need?
See_all_our_guides,_drawings_and_CAD_files_here

Returns

Returns are not accepted for this product.
